826648-5 | AMP
Pin header, 5 pole, pitch 2.54 mm, straight, green, 826648-5
Unit Price (€ / pc.)
0.9282 € *
Available: 7 pcs.
Available in 5 Days: 1,031 pcs. - if ordered today
Total Price:
0.93 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9282 €
100 pcs.
0.7854 €
300 pcs.
0.7259 €
*incl. VAT plus shipping costs
Subject to prior sale

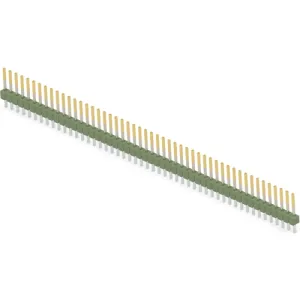

Single-row pin headers for PCB mounting, type TE Connectivity/AMP Modu II ..-0826.
With 2.54 mm grid. For Modu IV socket headers without interlock. Insulated housing made of thermoplastic polyester, green, compliant with UL 94 V-0; Contact types: tin bronze contacts, 0.8 µ selective gold-plated on nickel primer (dimension F) and tinned soldering side or brass contacts with tinned contact and solder area. The number of contacts can be reduced as required by breaking them off.
Gold-plated, pin length B 8.0 mm, type ..-0826.

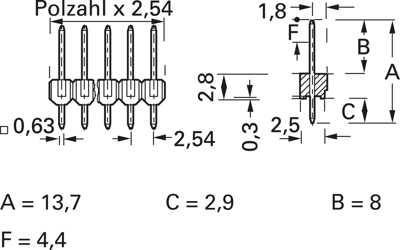

Straight pins, gold-plated in the contact area (0.8 µm Au over 1.3 µm Ni), tinned in the solder area (2.5 µm Sn over 1.3 µm Ni); Dimension A: 13.7 mm. Dimension C: 2.9 mm. Dimension F: 4.4 mm.
Type: 0-0826648-5, 5-pole
Technical specifications
| Additional parts | equipped | |
| Pin number | 5 pole | |
| Breakable | Yes | |
| Connection plating | tin-plated | |
| Type of locking | Yes | |
| Grid | 2.54 mm | |
| Version | pin header | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated current | 5 A | |
| Orientation | straight | |
| contact surface | gold-plated | |
| Colour | green | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366930 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
