5-826648-0 | AMP

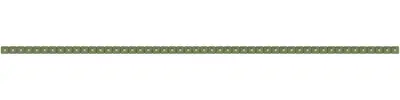

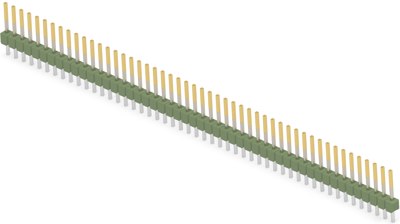

Pin header, 50 pole, pitch 2.54 mm, straight, green, 5-826648-0
Unit Price (€ / pc.)
12.3165 € *
Available: 20 pcs.
Available in 12 Days: 150 pcs. - if ordered today
Total Price:
12.32 € *
Price list
Quantity
Price per unit*
1 pcs.
12.3165 €
10 pcs.
11.0432 €
50 pcs.
10.3292 €
100 pcs.
9.6985 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 5-826648-0, AMP
Pin header, 50 pin, pitch 2.54 mm, straight, green.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 50 pole | |
| Grid | 2.54 mm | |
| Connection | PCB connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated current | 5 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Breakable | Yes | |
| Colour | green |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Electrical equipment take-back |  |
