647892-3 | AMP

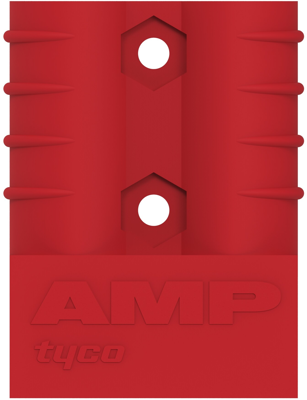

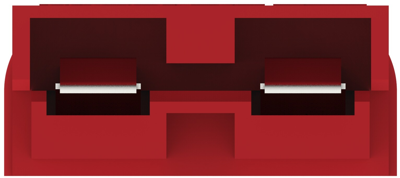

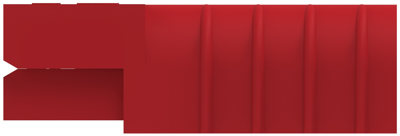

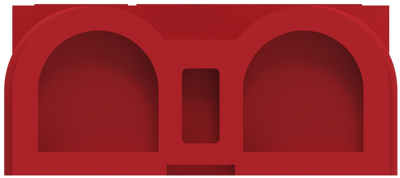

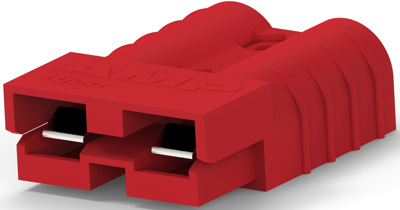

Socket header, 2 pole, pitch 19.06 mm, straight, red, 647892-3
Unit Price (€ / pc.)
13.3399 € *
Available: 0 pcs.
Available in 5 Days: 322 pcs.
Leadtime: 23 Weeks **
Total Price:
13.34 € *
Price list
Quantity
Price per unit*
1 pcs.
13.3399 €
10 pcs.
12.2689 €
50 pcs.
11.0432 €
100 pcs.
9.9365 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 647892-3, AMP
Wire-to-Wire, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female/Male
- Housing Material: Polycarbonate
- Housing Color: red
- Number of positions: 2
- Operating Temperature Range: -20 – 105 °C [-4 – 221 °F]
- Rated current: 50 A
- Centerline (Pitch): 19.06 mm
- Sealable: No
Technical specifications
| Colour | red | |
| Type of locking | Yes | |
| contact surface | silver-plated | |
| Rated current | 50 A | |
| Grid | 19.06 mm | |
| Connection plating | silver-plated | |
| Pin number | 2 pole | |
| Version | socket header | |
| Orientation | straight | |
| Connection | crimp connection | |
| Contact type | socket/pin | |
| Rated voltage | 600 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369001 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
