5103311-3 | AMP

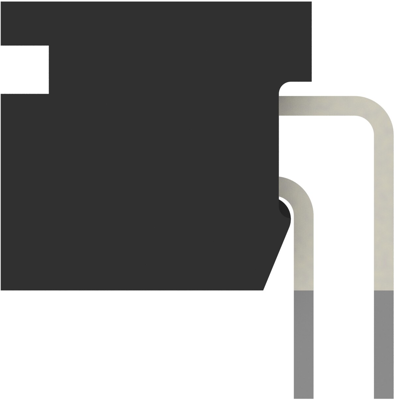

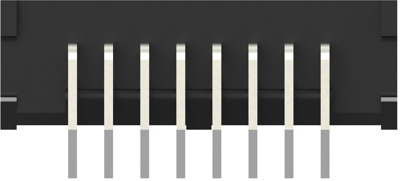

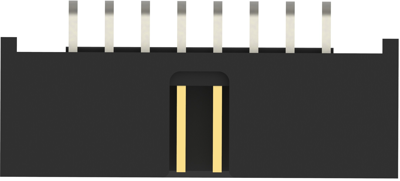

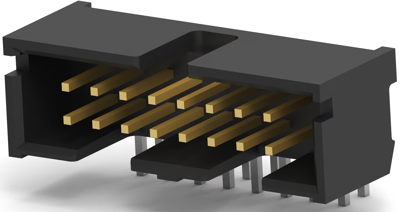

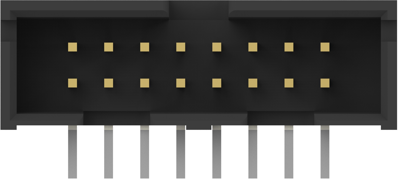

Pin header, 16 pole, pitch 2.54 mm, angled, black, 5103311-3
Unit Price (€ / pc.)
3.9865 € *
Available in 5 Days: 1,437 pcs. - if ordered today
Total Price:
3.99 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9865 €
10 pcs.
3.7009 €
25 pcs.
3.4510 €
50 pcs.
3.1416 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin headers, short design, angled solder pins, type ..-5103311.
Made of nylon, glass fiber-reinforced, black, to UL 94 V-0; Operating current: max. 1 A. Dielectric strenght: 500 VAC. Contacts: mating area gold plated on nickel primer, soldering area tinned on nickel primer. Grid: 2.54 x 2.54 mm. Standards: DIN 41651, DIN 41611, UL, MiL-C-8350. Locking/release levers cannot be used.
Technical attributes (type, number of poles, dimens): 0-5103311-3, 16-pole, A 27.94 mm/B 17.78 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| contact surface | gold-plated | |
| Connection | PCB connection | |
| Orientation | angled | |
| Contact type | pin | |
| Version | pin header | |
| Rated current | 1 A | |
| Colour | black | |
| Rated voltage | 250 V | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Type of locking | Yes | |
| Connection plating | tin-plated | |
| Pin number | 16 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
