5103311-1 | AMP

Pin header, 10 pole, pitch 2.54 mm, angled, black, 5103311-1

Order No.: 56F6140
EAN: 4099891000462
MPN:
5103311-1
0-5103311-1
Series: AMP-LATCH

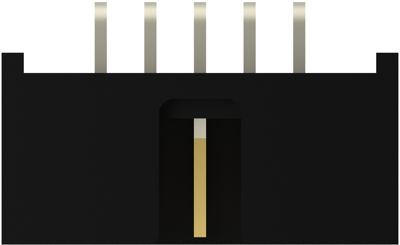

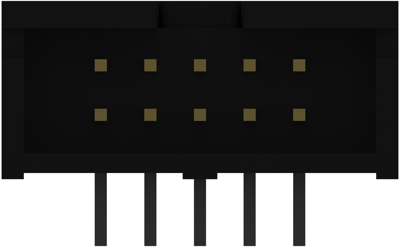

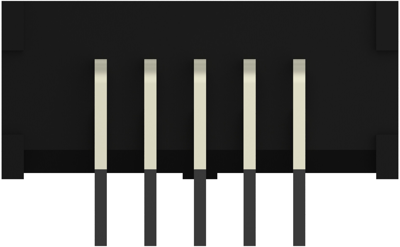

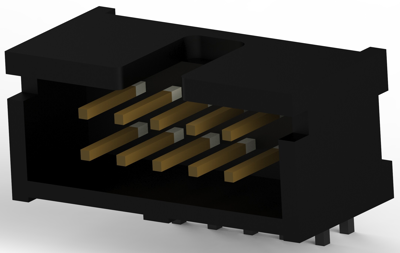

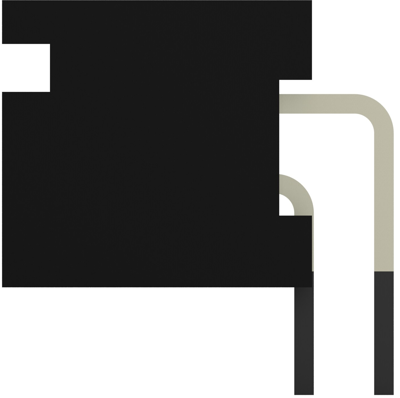

5103311-1 AMP PCB Connection Systems Image 1
5103311-1 AMP PCB Connection Systems Image 2
5103311-1 AMP PCB Connection Systems Image 3
5103311-1 AMP PCB Connection Systems Image 4
5103311-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.8798 € *
Available: 322 pcs.
Available in 5 Days: 309 pcs. - if ordered today
Total Price:
2.88 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8798 €
10 pcs.
2.6775 €
25 pcs.
2.4990 €
50 pcs.
2.2729 €
*incl. VAT plus shipping costs
Subject to prior sale

Pin headers, short design, angled solder pins, type ..-5103311.

Made of nylon, glass fiber-reinforced, black, to UL 94 V-0; Operating current: max. 1 A. Dielectric strenght: 500 VAC. Contacts: mating area gold plated on nickel primer, soldering area tinned on nickel primer. Grid: 2.54 x 2.54 mm. Standards: DIN 41651, DIN 41611, UL, MiL-C-8350. Locking/release levers cannot be used.

Technical attributes (type, number of poles, dimens): 0-5103311-1, 10-pole, A 20.32 mm/B 10.16 mm

Technical specifications
Filter Property Value
Version pin header
Colour black
Type of locking Yes
Pin number 10 pole
Additional parts equipped
Connection PCB connection
Connection plating tin-plated
Rated voltage 250 V
Contact type pin
Rated current 1 A
contact surface gold-plated
Orientation angled
Grid 2.54 mm
Number of rows 2
Logistics
Property Value
Country of origin MX
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
