AMP

350777-4 | AMP

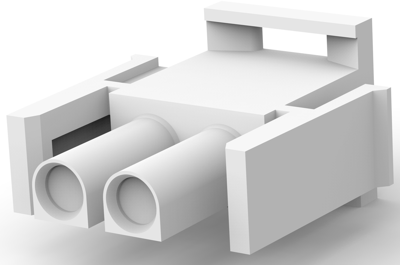

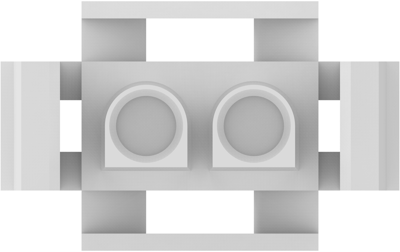

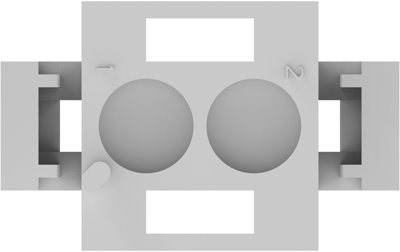

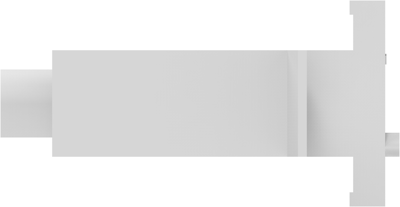

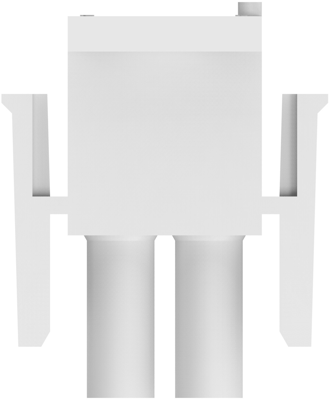

Plug housing, 2 pole, pitch 6.35 mm, straight, natural, 350777-4

default S
front S
default L
front L
Total price
(0.60 € * / pcs.)
2.97 €
Available: 139 pcs.
Next delivery: 4,843 pcs. on 2023-01-30
Quantity
Price per unit*
5 pcs.
0.60 €
20 pcs.
0.55 €
100 pcs.
0.50 €
200 pcs.
0.45 €
*incl. VAT plus shipping costs
Show 2 variants
Description

Product by AMP at Bürklin Elektronik

Cable connectors, bare, 1 to 15 poles, type TE Connectivity/AMP Universal Mate-N-Lok.

Made of white polyamide, flame retardant to UL 94 V-0, certified to VDE 0720, VDE 0730 regulations 29 and 30, UL and CSA. The permanently covered pin or female contacts may be live when inserted subsequently. Housing for insert mix with pin or female contacts, a leading grounding pin possible, with safe interlock and absolutely touch-proof when plugged in or separated. Current load capacity depending on the number of poles; conductor cross-section and ambient temperature: up to 25 A max. Dielectric strength: 5.0 kVAC/10 kV contact/contact. Operating temperatures: –55 to +105 A. Please order the corresponding pin or female contacts and coding pins described below separately.

Cable connectors, bare, 2-pole, type 0-035.

Type: 0–0350777–4, 2–pole, plug housing

Technical specifications
Connection crimp connection
Number of rows 1
Version plug housing
Additional parts unequipped
Colour natural
Contact type socket/pin
Rated voltage 600 V
Rated current 19 A
Orientation straight
Pin number 2 pole
Grid 6.35 mm
Type of locking Yes
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85472000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
1 item in 2 variations
Item description
Price list
Total
Version
Grid
Type of locking
Pin number
Number of rows
Rated voltage
Orientation
Contact type
Additional parts
Connection
Colour
Rated current
Plug housing, 2 pole, pitch 6.35 mm, straight, natural, 350777-4
Order No.:
 71F602
Manufacturer:
 AMP
Manufacturer SKU
 350777-4
5 pcs.
0.60 €
20 pcs.
0.55 €
100 pcs.
0.50 €
200 pcs.
0.45 €
2.97 € *
Available: 139 pcs.
Next delivery: 4,843 pcs. on 2023-01-30
plug housing
6.35 mm
Yes
2 pole
1
600 V
straight
socket/pin
unequipped
crimp connection
natural
19 A
Plug housing, 2 pole, pitch 6.35 mm, straight, natural, 350777-1
Order No.:
 35P4916
Manufacturer:
 AMP
Manufacturer SKU
 350777-1
10 pcs.
0.35 €
50 pcs.
0.31 €
200 pcs.
0.28 €
500 pcs.
0.26 €
3.45 € *
Available: 7,269 pcs.
plug housing
6.35 mm
Yes
2 pole
1
600 V
straight
socket/pin
unequipped
crimp connection
natural
19 A
*incl. VAT plus shipping costs
