2-1445055-2 | AMP

Pin header, 2 pole, pitch 3 mm, angled, black, 2-1445055-2

Order No.: 71F5730
EAN: 4099891010379
MPN:
2-1445055-2

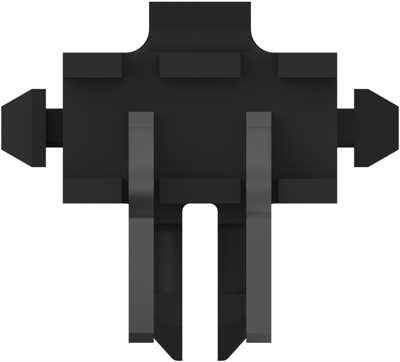

2-1445055-2 AMP PCB Connection Systems Image 1

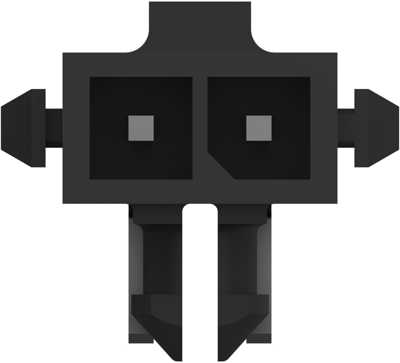

2-1445055-2 AMP PCB Connection Systems Image 2

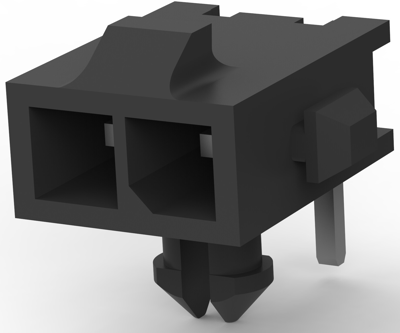

2-1445055-2 AMP PCB Connection Systems Image 3

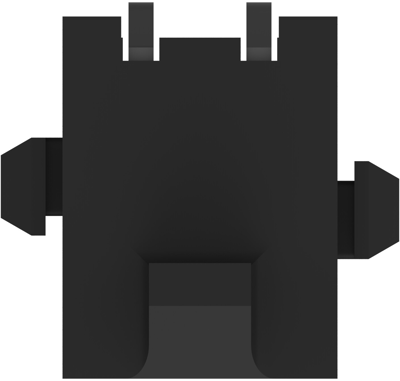

2-1445055-2 AMP PCB Connection Systems Image 4

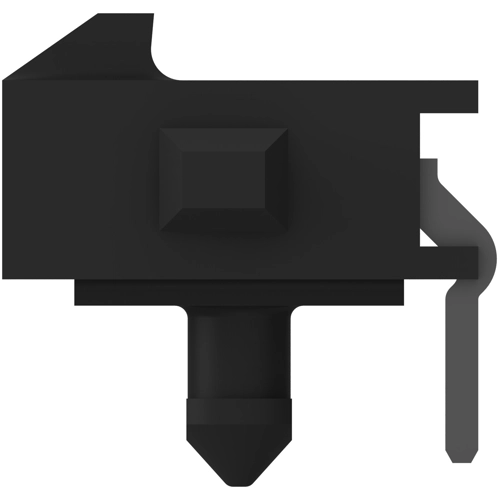

2-1445055-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.0353 € *
Available: 50 pcs.
Available in 5 Days: 130 pcs. - if ordered today
Total Price:
1.04 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.0353 €

Angled single-row PCB sockets, type 2-1445055.

With snap-in holder on the PCB; Housing: Nylon, high temperature-resistant, flame retardant to UL 94 V-0. Contacts: tinned brass.

Technical attributes (type, number of poles, length): 2-1445055-2, 2-pole, L 10.14 mm

Technical specifications
Colour black
Type of locking Yes
contact surface tin-plated
Rated current 5 A
Grid 3 mm
Connection plating tin-plated
Pin number 2 pole
Version pin header
Additional parts equipped
Orientation angled
Connection solder pin
Contact type pin
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin JP
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
