1445022-2 | AMP

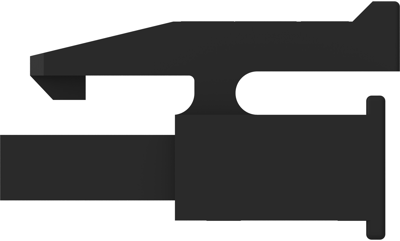

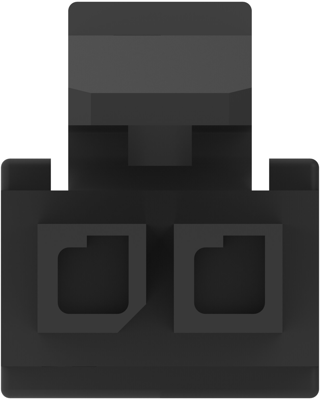

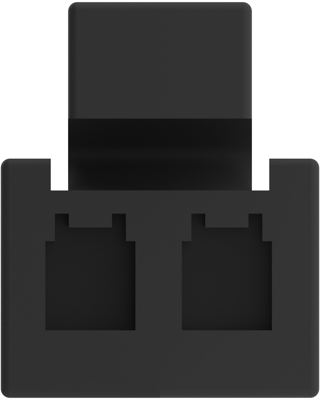

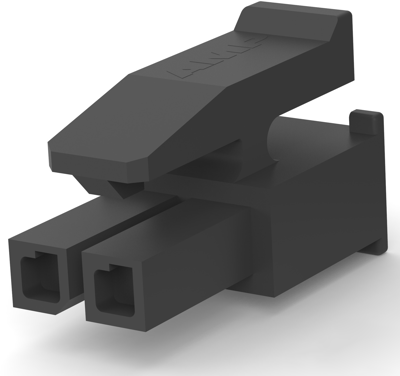

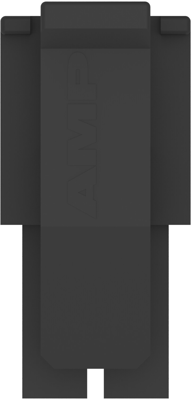

Name: Socket housing, 2 pole, pitch 3 mm, straight, black, 1445022-2
Brand: AMP
SKU: 71F5620
Price: 0.46 EUR
Availability: InStock

Socket housing, 2 pole, pitch 3 mm, straight, black, 1445022-2

Order No.: 71F5620

EAN: 4099891009878

MPN:

1445022-2

0-1445022-2

Series: Micro MATE-N-LOK

Image may differ

Key Specification:

Version socket housing

Contact type socket

Pin number 2 pole

Grid 3 mm

Connection crimp connection

Show 5 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.4641 € *

Available: 544 pcs.

Leadtime: 15 Weeks **

Total Price:

0.46 € *

Price list

Quantity

Price per unit*

1 pcs.

0.4641 €

100 pcs.

0.3094 €

200 pcs.

0.2737 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Cable connectors, 2- to 24-pole, 3.0 mm grid, type TE Connectivity/AMP Micro Mate-N-Lok.

3.0 mm grid, single- and dual-row; Rated voltage: 250 V. Rated current: max. 5.0 A. Insulation resistance: min. 1000 Mohm. Contact resistance: max. 20 mohm. Insertion force (pro contact): 6.67 N. Operating temperatures: –40 to +105 °C. Certifications: UL, CSA.

Female connector housings, single-row, bare, type 0-144.

Made of Nylon, flame retardant to UL 94 V-0.

Technical attributes (type, number of poles, length): 0-1445022-2, 2-pole, L 7.0 mm

Download

Technical Data Sheet - EN Technical Data Sheet

DID – Dimension drawing - EN DID – Dimension drawing

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	TW
Customs tariff number	85472000

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

Accessory

Receptacle, 0.2-0.5 mm², AWG 24-20, crimp connection, tin-plated, 794606-1

Order No.:

71F7247

Manufacturer SKU:

794606-1

Available: 14,200 pcs. Leadtime: 13 Weeks **

0.06 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Receptacle, 0.2-0.52 mm², AWG 24-20, crimp connection, tin-plated, 794610-1

Order No.:

71F5714

Manufacturer SKU:

794610-1

Available: 4,976 pcs. Leadtime: 6 Weeks **

0.15 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Receptacle, 0.2-0.52 mm², AWG 24-20, crimp connection, tin-plated, 1-794610-1

Order No.:

71F7242

Manufacturer SKU:

1-794610-1

Available: 963 pcs. Leadtime: 14 Weeks **

0.25 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Receptacle, 0.2-0.52 mm², AWG 24-20, crimp connection, gold-plated, 1-794610-2

Order No.:

71F7243

Manufacturer SKU:

1-794610-2

Available: 0 pcs. Available in 5 Days: 12,378 pcs. Leadtime: 1 Week **

0.10 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Plug housing, 2 pole, pitch 3 mm, straight, black, 1445048-2

Order No.:

71F5680

Manufacturer SKU:

1445048-2

Available: 761 pcs. Leadtime: 32 Weeks **

0.28 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Plug housing, 2 pole, pitch 3 mm, straight, black, 1445049-2

Order No.:

71F5650

Manufacturer SKU:

1445049-2

Available: 320 pcs. Leadtime: 32 Weeks **

0.24 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Receptacle, 0.05-0.14 mm², AWG 30-26, crimp connection, gold-plated, 1-794607-2

Order No.:

71F7246

Manufacturer SKU:

1-794607-2

Available: 0 pcs. Available in 5 Days: 30,000 pcs. Leadtime: 1 Week **

0.10 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Receptacle, 0.05-0.13 mm², AWG 30-26, crimp connection, gold-plated, 1-794611-1

Order No.:

71F7240

Manufacturer SKU:

1-794611-1

Available: 0 pcs. Available in 5 Days: 10,488 pcs. Leadtime: 1 Week **

0.07 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Receptacle, 0.05-0.14 mm², AWG 30-26, crimp connection, tin-plated, 1-794607-1

Order No.:

71F7245

Manufacturer SKU:

1-794607-1

Available: 0 pcs. Available in 5 Days: 15,000 pcs. Leadtime: 1 Week **

0.08 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Receptacle, 0.05-0.13 mm², AWG 30-26, crimp connection, tin-plated, 794611-1

Order No.:

71F5710

Manufacturer SKU:

794611-1

Available: 426 pcs. Leadtime: 14 Weeks **

0.15 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Pin header, 2 pole, pitch 3 mm, angled, black, 2-1445055-2

Order No.:

71F5730

Manufacturer SKU:

2-1445055-2

Available: 0 pcs. Leadtime: 25 Weeks **

1.04 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Receptacle, 0.05-0.13 mm², AWG 30-26, crimp connection, gold-plated, 1-794611-2

Order No.:

71F7241

Manufacturer SKU:

1-794611-2

Available: 0 pcs. Leadtime: 14 Weeks **

0.09 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Receptacle, 0.2-0.5 mm², AWG 24-20, crimp connection, tin-plated, 1-794606-1

Order No.:

71F7248

Manufacturer SKU:

1-794606-1

Available: 0 pcs. Leadtime: 20 Weeks **

0.06 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Receptacle, 0.05-0.13 mm², AWG 30-26, crimp connection, tin-plated, 794607-1

Order No.:

71F7244

Manufacturer SKU:

794607-1

Available: 0 pcs. Leadtime: 20 Weeks **

0.04 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Receptacle, 0.2-0.5 mm², AWG 24-20, crimp connection, gold-plated, 1-794606-2

Order No.:

71F7249

Manufacturer SKU:

1-794606-2

Available: 0 pcs. Leadtime: 20 Weeks **

0.06 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Pin header, 2 pole, pitch 3 mm, angled, black, 2-1445057-2

Order No.:

71F5760

Manufacturer SKU:

2-1445057-2

Available: 0 pcs. Leadtime: 25 Weeks **

0.83 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Variations

On our category pages and product pages you will find the following green symbols:

Available via download:

Schematic symbols
PCB footprints
3D models

Schematic symbols and PCB footprints are available

Available via download:

Schematic symbols
PCB footprints

No models are currently available

Circuit diagram symbols and PCB footprint can be requested by clicking on the icon for the respective product.

Country	Runtime days	Freight excl. VAT	Freight incl. VAT
Germany	1	6,90 €	8,21 €
Austria	1-2	8,30 €	9,96 €
Switzerland	1-2	16,40 €	19,52 €

	Connection	crimp connection
	Number of rows	1
	Version	socket housing
	Additional parts	unequipped
	Colour	black
	Contact type	socket
	Rated voltage	250 V
	Rated current	5 A
	Orientation	straight
	Pin number	2 pole
	Grid	3 mm
	Type of locking	Yes
