103906-3 | AMP

Pin header, 4 pole, pitch 2.54 mm, angled, black, 103906-3

Order No.: 37P6887
EAN: 4099889963762
MPN:
103906-3
Series: AMPMODU

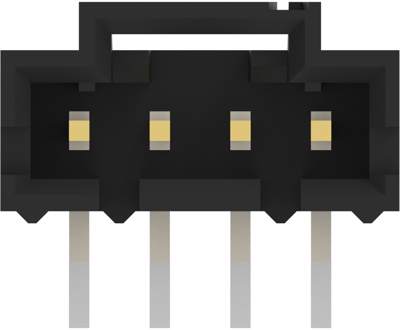

103906-3 AMP PCB Connection Systems Image 1

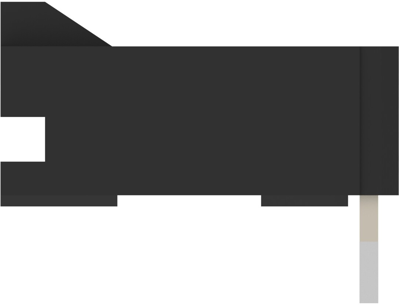

103906-3 AMP PCB Connection Systems Image 2

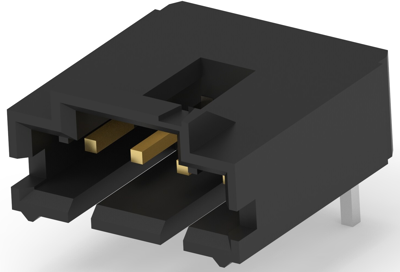

103906-3 AMP PCB Connection Systems Image 3

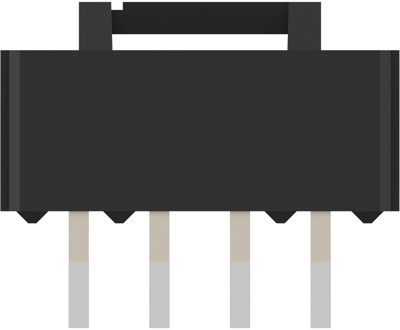

103906-3 AMP PCB Connection Systems Image 4

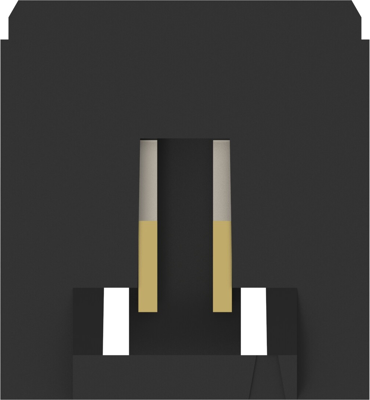

103906-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.8211 € *
Standard delivery time from the manufacturer is: 38 Weeks
Total Price:
4,966.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
6048 pcs.
0.8211 €

PCB Connection System, 103906-3, AMP

Wire-to-Board, Printed Circuit Board, Shrouded, Right Angle, 4 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: Thermoplastic
  • Housing Color: black
  • Orientation: angled
  • Number of positions: 4
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Filter Property Value
Grid 2.54 mm
Breakable No
Contact type pin
Connection plating tin-plated
contact surface gold-plated
Version pin header
Rated current 3 A
Orientation angled
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour black
Pin number 4 pole
Connection PCB connection
Logistics
Property Value
Country of origin CZ
Customs tariff number 85366930
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform No
Substance description Lead
