1-5316318-0 | AMP

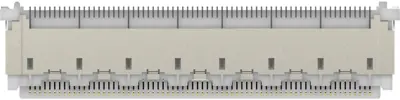

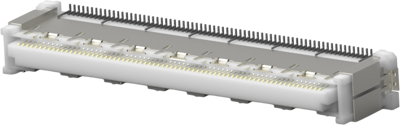

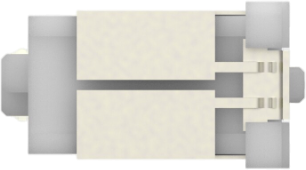

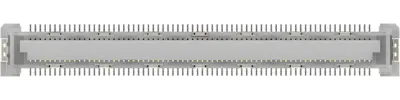

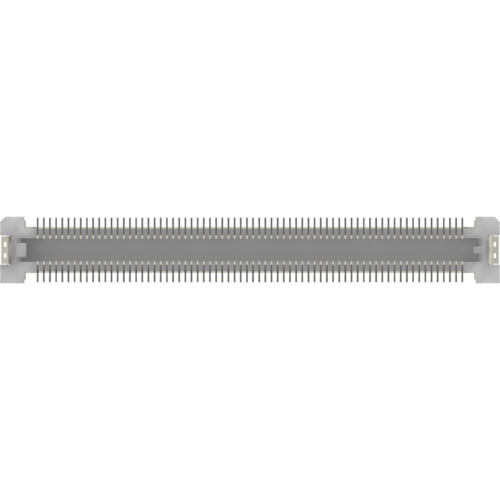

Socket header, 140 pole, pitch 0.6 mm, straight, black, 1-5316318-0
Order No.: 59F773
MPN:
1-5316318-0
Unit Price (€ / pc.)
27.1439 € *
Available in 5 Days: 81 pcs. - if ordered today
Total Price:
27.14 € *
Price list
Quantity
Price per unit*
1 pcs.
27.1439 €
2 pcs.
25.3946 €
5 pcs.
23.8595 €
10 pcs.
22.1697 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Mount Receptacle, 1-5316318-0, AMP
PCB Mount Receptacle, Vertical, Board-to-Board, 140 Position, 0.6 mm Centerline, Gold (Au), Surface Mount, Signal, Black, Tray, Free Height.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 0.6 mm | |
| contact surface | gold-plated | |
| Contact type | socket | |
| Connection | solder connection | |
| Connection plating | tin-plated | |
| Rated voltage | 50 V | |
| Orientation | straight | |
| Number of rows | 2 | |
| Pin number | 140 pole | |
| Colour | black | |
| Version | socket header | |
| Rated current | 0.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
