5520260-4 | AMP

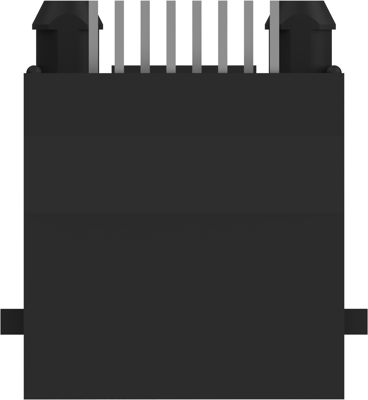

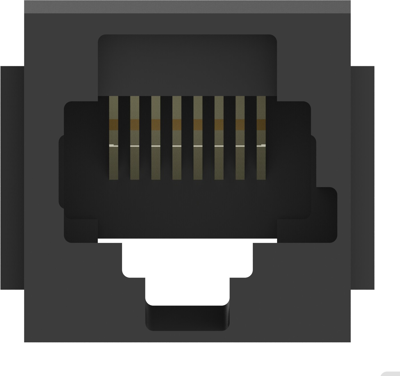

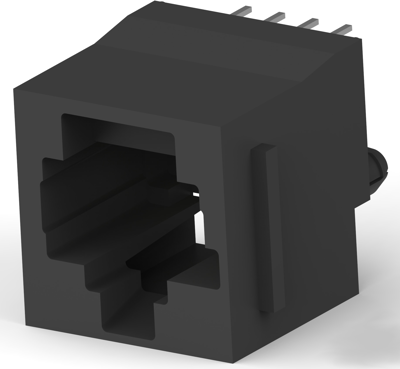

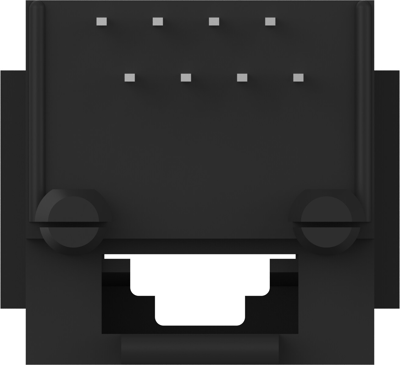

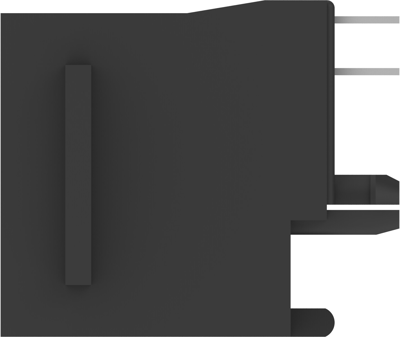

Socket, RJ45, 8 pole, 8P8C, Cat 3, solder connection, PCB mounting, 5520260-4
Order No.: 73F588
EAN: 4099889823653
MPN:
5520260-4
0-5520260-4
Unit Price (€ / pc.)
2.5823 € *
Available: 332 pcs.
Available in 5 Days: 1,963 pcs. - if ordered today
Total Price:
2.58 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5823 €
25 pcs.
2.2134 €
100 pcs.
2.0468 €
250 pcs.
1.9397 €
1000 pcs.
1.7493 €
*incl. VAT plus shipping costs
Subject to prior sale
Standard modular receptacle housing, 5520260-4, AMP
For PCB mounting, top entry, with housing termination. Type 0-5520260-4 is keyed with a groove at the side; Dimensions B/C: 15.9/16.4.
Technical attributes (type, number of poles of the housing/contacts, dimensions A/D): 0-5520260-4, 8-positions/8 contacts, 18.3/15.5 mm.
Technical specifications
| Pole image | 8P8C | |
| Assembly | PCB mounting | |
| RJ-Version | RJ45 | |
| Pin number | 8 pole | |
| Version | socket | |
| Category | Cat 3 | |
| Additional parts | equipped | |
| Connection | solder connection |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366930 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
