AMP

5352268-1 | AMP

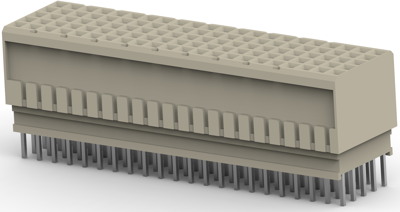

Female connector, 120 pole, pitch 2 mm, straight, 5352268-1

Order No.:  37P3697
MPN:
5352268-1
Series:  Z-PACK
EAN: 4099891036003
AMP
default L
default S
Images may differ
Unit Price (€ / pc.)
28.1792 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Add to Cart
Total Price:
28.18 € *
*incl. VAT plus shipping costs
**Subject to prior sale
12 pcs.
28.1792 €
Description

Hard Metric Backplane Connectors, 5352268-1, AMP

Backplane Interface Type: 2mm HM, PCB Connector Assembly Type: PCB Mount Receptacle, Connector System: Board-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Number of Signal Positions: 110, Number of Columns: 22, Number of Rows: 5, Backplane Architecture: Mezzanine, Number of Positions: 110, Crosstalk Version: Standard, Data Rate: ≤1 Gb/s, Contact Base Material: Phosphor Bronze, CompactPCI Designation: None, Contact Mating Area Plating Material: Gold, Contact Mating Area Plating Material Thickness: 1.27 µm, Contact Current Rating (Max): 1.5 A, Connector Mounting Type: Board Mount, Housing Material: Polyester - GF, Centerline (Pitch): 2 mm, Housing Color: Gray, Backplane Module Length: 44 mm, Operating Temperature Range: -55 – 125 °C, Shielded: No, Circuit Application: Power & Signal, UL Flammability Rating: UL 94V-0, AdvancedTCA Specified Product: No, Packaging Quantity: 11, Packaging Method: Tube

Technical specifications
Connection press-in connection
Design B22
Contact type socket
contact surface gold-plated
Rated current 1.5 A
Orientation straight
Pin number 120 pole
Grid 2 mm
Show similar products (0)
Logistics
Country of origin TW
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Search results: 1 item in 2 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Availability
Orientation
Design
Contact type
contact surface
Grid
Pin number
Connection
Rated current
Female connector, 120 pole, pitch 2 mm, angled, 5352152-1
Order No.:
 37P3622
Manufacturer:
 AMP
Manufacturer SKU:
 5352152-1
Total Price: 14.41 € *
12 pcs.
14.4109 €
36 pcs.
13.5541 €
Available: 0 pcs.
Available in 5 Days: 3,804 pcs.
Leadtime: 1 Week **
angled
B22
socket
gold-plated
2 mm
120 pole
press-in connection
1.5 A
Female connector, 120 pole, pitch 2 mm, straight, 5352268-1
Order No.:
 37P3697
Manufacturer:
 AMP
Manufacturer SKU:
 5352268-1
Total Price: 28.18 € *
12 pcs.
28.1792 €
Available: 0 pcs.
Leadtime: 13 Weeks **
straight
B22
socket
gold-plated
2 mm
120 pole
press-in connection
1.5 A
*incl. VAT plus shipping costs
**Subject to prior sale
Images may differ
