962825-2 | AMP

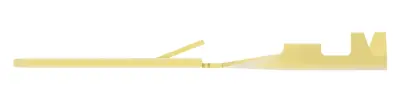

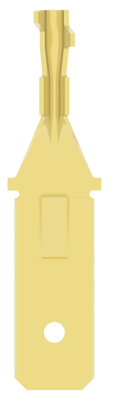

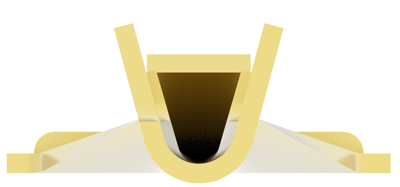

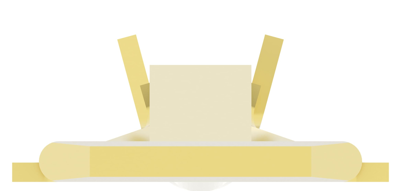

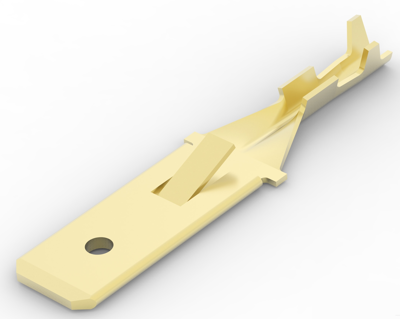

Faston plug, 6.35 x 0.81 mm, L 27.97 mm, uninsulated, straight, 0.2 to 0.51 mm², AWG 24 to 20, 962825-2
Unit Price (€ / pc.)
0.1904 € *
Available in 5 Days: 136,500 pcs. - if ordered today
Total Price:
19.04 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1904 €
250 pcs.
0.1761 €
500 pcs.
0.1642 €
1000 pcs.
0.1476 €
*incl. VAT plus shipping costs
Subject to prior sale
Flat plug, 962825-2, AMP
Quick Disconnect Tab, 24-20 AWG, 0.2-0.51 mm² Wire, 6.35 mm Tab Width, Straight, Phosphor Bronze, Pre-Tin Plating, FASTIN-FASTON 250.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | straight | |
| Length | 27.97 mm | |
| Material | phosphor bronze, tin-plated | |
| Cable cross-section | 0.2 to 0.51 mm² | |
| Version | faston plug | |
| AWG cross-section | AWG 24 to 20 | |
| Connection | crimp connection | |
| Plug width x plug thickness | 6.35 x 0.81 mm | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
