63982-1 | AMP

Faston plug, 4.75 x 0.51 mm, L 12.45 mm, uninsulated, straight, 63982-1

Order No.: 34P8694
EAN: 4099889613940
MPN:
63982-1
Series: FASTON

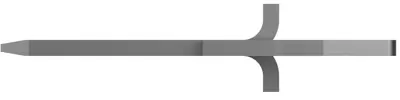

63982-1 AMP Flat Plugs Image 1

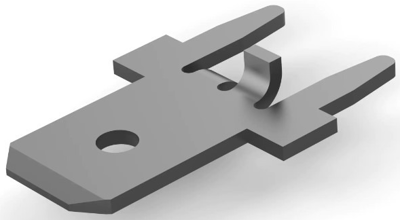

63982-1 AMP Flat Plugs Image 2

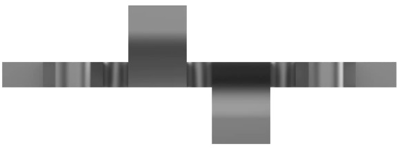

63982-1 AMP Flat Plugs Image 3

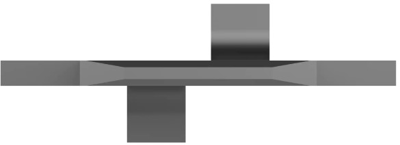

63982-1 AMP Flat Plugs Image 4

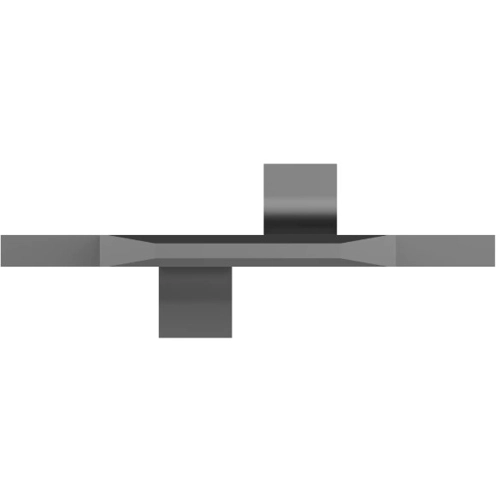

63982-1 AMP Flat Plugs Image 5
Image may differ
Unit Price (€ / pc.)
0.2451 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
1.23 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2451 €
10 pcs.
0.2273 €
25 pcs.
0.2118 €
50 pcs.
0.1916 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Terminal, 63982-1, TE Connectivity

Terminates To: Printed Circuit Board, Stud Hole: Yes, Terminal Angle: Straight, PCB Terminal Plating Material: Tin, Contact Plating Material: Tin, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: Brass, Terminal Size: 4.75, PCB Terminal Termination Method: Through Hole, Wire Insulation Support: With, Stud Diameter: 1.4 mm, PCB Terminal PCB Thickness (Recommended): 1.57 mm, PCB Terminal Mating Tab Width: 4.75 mm, PCB Terminal Mating Tab Thickness: 0.51 mm, PCB Hole Diameter: 1.32 mm, Operating Temperature Range: -30-110 °C, Packaging Quantity: 2000, PCB Terminal Packaging Method: Bag, Comment: Insertion equipment available.

Technical specifications
Filter Property Value
Plug width x plug thickness 4.75 x 0.51 mm
Material brass, tin-plated
Version faston plug
Isolated No
Angulation 180°
Design straight
Length 12.45 mm
Connection solder connection
Logistics
Property Value
Country of origin US
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
