63823-1 | AMP

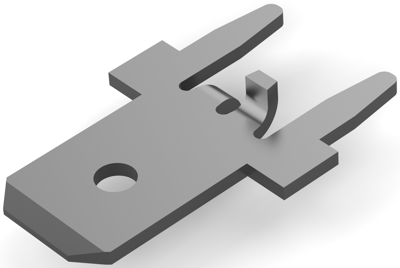

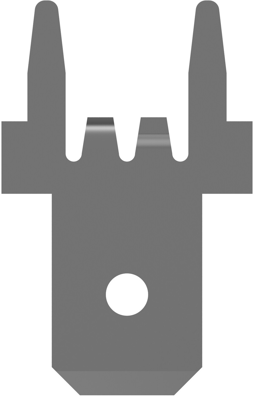

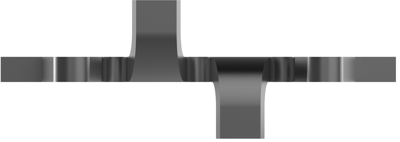

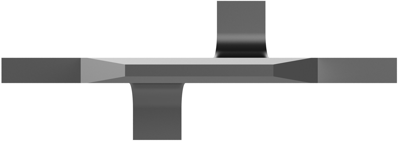

Faston plug, 4.75 x 0.51 mm, L 12.45 mm, uninsulated, straight, 63823-1
Unit Price (€ / pc.)
0.0631 € *
Available: 0 pcs.
Available in 5 Days: 64,000 pcs.
Leadtime: 20 Weeks **
Total Price:
1,009.12 € *
Price list
Quantity
Price per unit*
16000 pcs.
0.0631 €
32000 pcs.
0.0595 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminals, 63823-1, AMP
Terminates To: Printed Circuit Board, Stud Hole: No, Terminal Angle: Straight, PCB Terminal Plating Material: Tin, Contact Plating Material: Tin, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: Brass, Terminal Size: 4.75, PCB Terminal Termination Method: Through Hole, Wire Insulation Support: With, PCB Terminal PCB Thickness (Recommended): 1.57 mm, PCB Terminal Mating Tab Width: 4.75 mm, PCB Terminal Mating Tab Thickness: 0.51 mm, PCB Hole Diameter: 1.32 mm, Height Above PC Board: 8.63 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -30-110 °C, Packaging Quantity: 16000, PCB Terminal Packaging Method: Reel, Comment: Insertion equipment available.
Technical specifications
| Connection | solder connection | |
| Length | 12.45 mm | |
| Plug width x plug thickness | 4.75 x 0.51 mm | |
| Angulation | 180° | |
| Isolated | No | |
| Design | straight | |
| Version | faston plug | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
