63038-2 | AMP

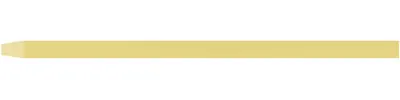

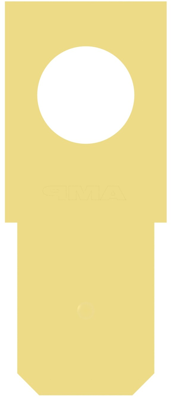

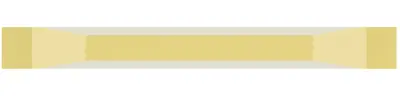

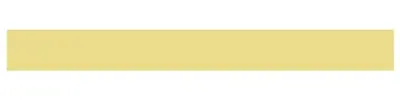

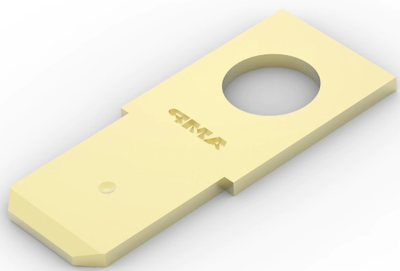

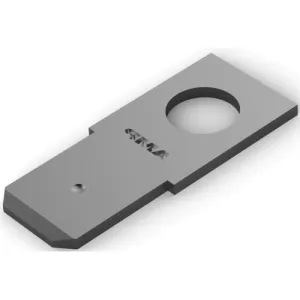

Faston plug, 6.35 x 0.81 mm, L 18.16 mm, uninsulated, straight, 63038-2
Unit Price (€ / pc.)
0.2178 € *
Available in 5 Days: 45,176 pcs. - if ordered today
Total Price:
21.78 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2178 €
250 pcs.
0.2011 €
500 pcs.
0.1868 €
1000 pcs.
0.1690 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Terminals, 63038-2, AMP
Insertion Force: Normal, PCB Terminal Mounting Style: Stud Mount, Terminates To: Printed Circuit Board, Stud Hole: Yes, Terminal Angle: Straight, PCB Terminal Plating Material: Unplated, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: Brass, Terminal Size: 6.35, PCB Terminal Terminal Orientation: Straight, PCB Terminal Termination Method: Through Hole, Stud Diameter: 4.5 mm, PCB Terminal Mating Tab Width: 6.35 mm, PCB Terminal Mating Tab Thickness: 0.81 mm, PCB Hole Diameter: 4.5 mm, Receptacle Terminal Stock Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -30-110 °C, Packaging Quantity: 1400, PCB Terminal Packaging Method: Bag
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Plug width x plug thickness | 6.35 x 0.81 mm | |
| Material | brass | |
| Version | faston plug | |
| Isolated | No | |
| Angulation | 180° | |
| Design | straight | |
| Length | 18.16 mm | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
