63038-1 | AMP

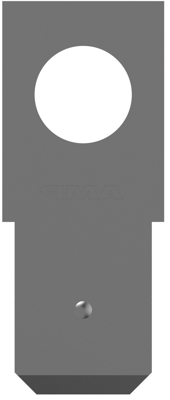

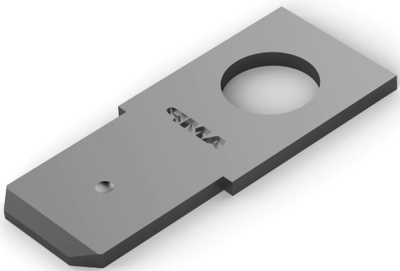

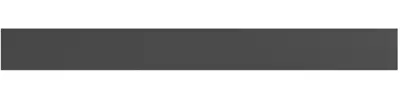

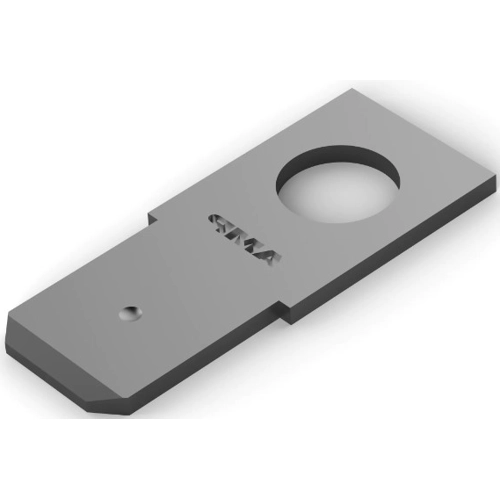

Faston plug, 6.35 x 0.81 mm, L 18.16 mm, uninsulated, straight, 63038-1
Unit Price (€ / pc.)
0.2892 € *
Standard delivery time from the manufacturer is: 33 Weeks
Total Price:
1.45 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2892 €
100 pcs.
0.2547 €
250 pcs.
0.2237 €
500 pcs.
0.1845 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Terminals, 63038-1, AMP
FASTON: Yes, PCB Terminal Mounting Style: Stud Mount, Terminates To: Printed Circuit Board, Stud Hole: Yes, Terminal Angle: Straight, Finish: Matte, PCB Terminal Plating Material: Tin, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: None, Terminal Size: 6.35, PCB Terminal Terminal Orientation: Straight, PCB Terminal Termination Method: Screw, Stud Diameter: 4.5 mm, PCB Terminal Mating Tab Width: 6.35 mm, PCB Terminal Mating Tab Thickness: 0.81 mm, PCB Hole Diameter: 4.5 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40-105 °C, CSA Certified: Yes, Packaging Quantity: 1000, PCB Terminal Packaging Method: Bag
Technical specifications
| Version | faston plug | |
| Connection | screw connection | |
| Isolated | No | |
| Angulation | 180° | |
| Material | brass, tin-plated | |
| Plug width x plug thickness | 6.35 x 0.81 mm | |
| Design | straight | |
| Length | 18.16 mm |
Download
Logistics
| Country of origin | NL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
