42865-3 | AMP

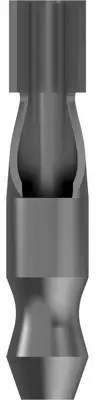

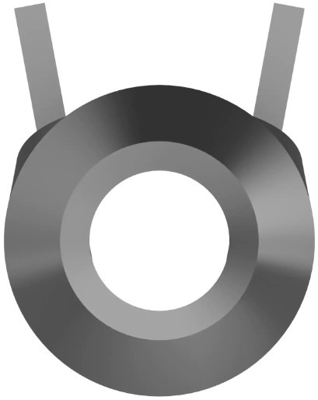

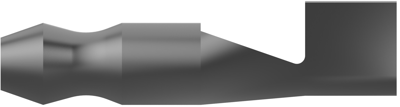

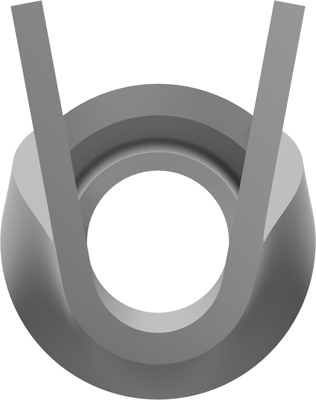

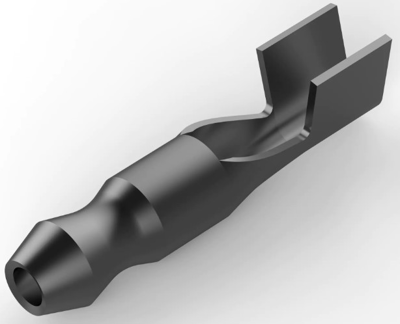

Round plug, Ø 4.57 mm, L 21.97 mm, uninsulated, straight, 2.0-6.0 mm², AWG 14-10, 42865-3
Order No.: 35P2586
EAN: 4099889615012
MPN:
42865-3
Unit Price (€ / pc.)
0.1059 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Crimp Wire Pins, Tabs and Ferrules, 42865-3, AMP
Crimp Wire Pin, Tab & Ferrule Barrel Type: Open Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Discrete Wire, Insulated: No, Crimp Wire Pin, Tab & Ferrule Plating Material: Tin, Crimp Wire Pin, Tab & Ferrule Terminal Type: Shur-Plug, Crimp Wire Pin, Tab & Ferrule Pin Diameter: 4.57 mm, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 14-10 AWG, Wire Size: 2-6 mm², Wire Size: 9600 CMA, Barrel Inside Diameter: 2.24 mm, Crimp Wire Pin, Tab & Ferrule Material Thickness: 0.45 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40-105 °C, Heavy Duty: No, Packaging Quantity: 5000, Crimp Wire Pin, Tab & Ferrule Packaging Method: Reel, Comment: Can be molded.
Technical specifications
| Connection | crimp connection | |
| Version | round plug | |
| AWG cross-section | AWG 14-10 | |
| Design | straight | |
| diameter | 4.57 mm | |
| Isolated | No | |
| Length | 21.97 mm | |
| Cable cross-section | 2.0-6.0 mm² | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | BR |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
