5-487509-6 | AMP

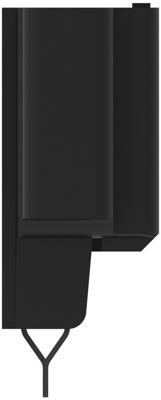

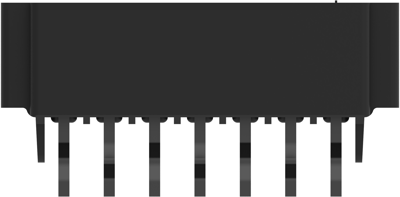

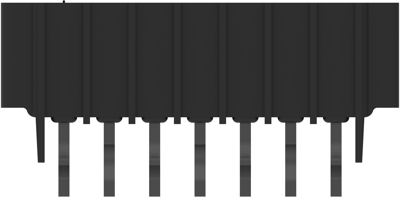

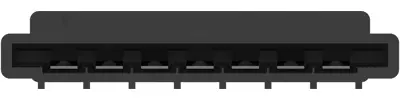

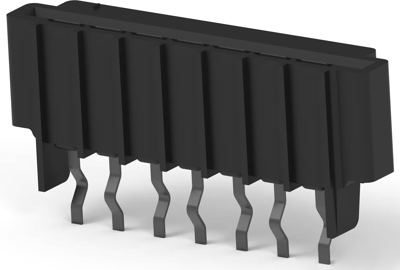

Connector, 7 pole, 1 row, pitch 2.54 mm, Solder pin, socket, tin-plated, 5-487509-6
Active
Product by AMP at Bürklin Elektronik
FFC Connectors, 5-487509-6, AMP
Connector & Housing Type: Receptacle, FFC Connector Product Type: Connector Assembly, Connector System: Wire-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Number of Positions: 7, Number of Rows: 1, PCB Mount Orientation: Vertical, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Current Rating (Max): 1 A, Termination Method to Printed Circuit Board: Through Hole - Solder, PCB Mount Retention Type: Z Bend, Mating Retention: Without, Mating Alignment: With, Panel Mount Feature: Without, Connector Mounting Type: Board Mount, Housing Material: Thermoplastic, Centerline (Pitch): 2.54 mm, FFC Cable Entry: Vertical, Housing Color: Black, PCB Thickness (Recommended): 1.57 mm, Operating Temperature Range: -55 – 105 °C, Circuit Application: Signal, UL Flammability Rating: UL 94V-0, Packaging Quantity: 720, Packaging Method: Tray
| Connection | Solder pin | |
| Number of rows | 1 | |
| Version | socket | |
| contact surface | tin-plated | |
| Rated current | 1 A | |
| Pin number | 7 pole | |
| Grid | 2.54 mm |
| Country of origin | TW |
| Customs tariff number | 85366990 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
