AMP

5748676-2 | AMP

D-Sub connector housing, size: 2 (DA), straight 180°, cable Ø 4.7 to 8.13 mm, zinc die casting, silver, 5748676-2

Order No.:  55F5391
MPN:
5748676-2
0-5748676-2
Series:  AMPLIMITE
EAN: 4099889813425
AMP
default L
default S
Images may differ
Unit Price (€ / pc.)
5.8429 € *
Available: 112 pcs.
Leadtime: 4 Weeks **
Total Price:
5.84 € *
Quantity
Price per unit*
1 pcs.
5.8429 €
10 pcs.
5.1289 €
100 pcs.
4.5220 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description

Metal caps for sub-D connectors HDP 20, type TE Connectivity/AMP HD 20 RFI/EMI.

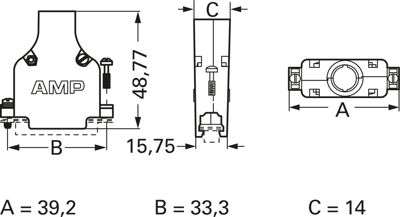

Made of zinc, chromalized in clear color. Suited especially for shielded round cables. Corresponding series HDP 20 connectors. Consists of two shell segments with two hex nuts and 4 cap screws; Thread: 4-40 UNC-2. Dimensions in mm: 9-pole: A 30.9, B 25, C 10.4. 15-pole: A 39.2, B 33.3, C 14. 25-pole: A 53.1, B 47, C 16.8. 37-pole: A 69.5, B 63.5, C 20.3.

With rubber bushing, type 0-5748.

Supplied with rubber bushing set for general adaptation of cable diameters.

Technical attributes (type, for connectors, for cable diameters (Cd) from/to): 0-5748676-2, 15-pole, Cd 4.7/8.1 mm

Technical specifications
Colour silver
Shell size 2 (DA)
Shell Material zinc die casting
Cable Outlet straight 180°
Cable diameter 4.7 to 8.13 mm
Type of locking locking screw 4-40 UNC
Show similar products (0)
Logistics
Country of origin DE
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
