640309-6 | AMP

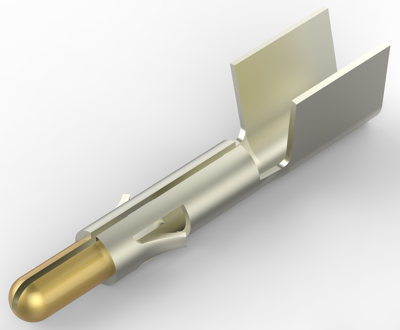

Pin contact, 3.31-5.26 mm², AWG 12-10, crimp connection, 640309-6
Unit Price (€ / pc.)
1.428 € *
Available in 5 Days: 8,360 pcs. - if ordered today
Power contact, 640309-6, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 19 A, Contact Type: Pin, Contact Retention Within Housing: With, Mating Pin Diameter: 2.13 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 12 - 10 AWG, Wire Size: 3.31 - 5.26 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | crimp connection | |
| AWG cross-section | AWG 12-10 | |
| Contact surface Connection range | nickel-plated | |
| Contact material | phosphor bronze | |
| Insulation diameter | 0.2 mm | |
| Contact surface mating area | gold-plated | |
| Version | pin contact | |
| Cable cross-section | 3.31-5.26 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
