1-1419158-6 | AMP

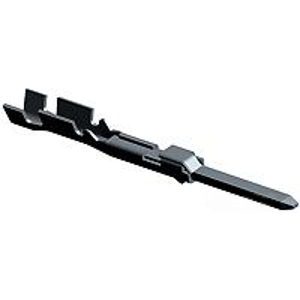

Tab, 0.22-0.35 mm², AWG 24-22, crimp connection, tin-plated, 1-1419158-6
Order No.: 35P9508
EAN: 4099889640830
MPN:
1-1419158-6
Unit Price (€ / pc.)
0.0774 € *
Standard delivery time from the manufacturer is: 29 Weeks
Contacts for motor vehicles, 1-1419158-6, AMP
Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 1 mm, Mating Tab Thickness: 0.64 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 24 - 22 AWG, Wire Size: 0.22 - 0.35 mm², Wire Size Search: 0.22 mm², 0.25 mm², 0.3 mm², 0.35 mm², Wire Size Search: 22 AWG, 23 AWG, Wire Insulation Diameter: 1.1 - 1.4 mm, Operating Temperature Range: -40 - 125 °C.
Technical specifications
| contact surface | tin-plated | |
| AWG cross-section | AWG 24-22 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.22-0.35 mm² | |
| Version | tab | |
| Insulation diameter | 1.1-1.4 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
