323086 | AMP
Uninsulated ring cable lug, 0.26-1.65 mm², AWG 22 to 16, 4.34 mm, M4, metal, 323086
Unit Price (€ / pc.)
0.4998 € *
Available in 5 Days: 28,341 pcs. - if ordered today
Total Price:
0.50 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4998 €
10 pcs.
0.3927 €
50 pcs.
0.3689 €
100 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale

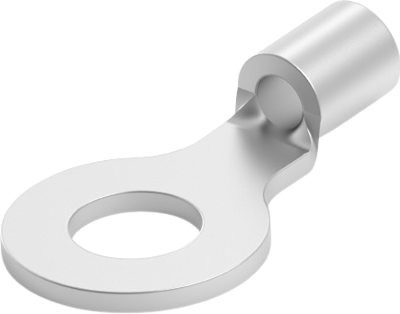

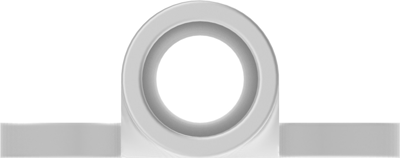

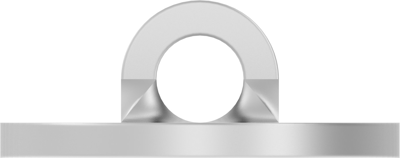

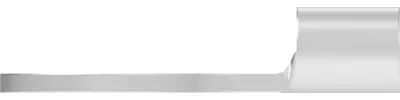

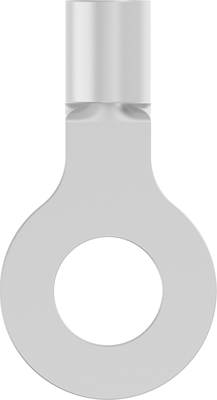

Ring terminal, 323086, AMP
Closed Ring Tongue Terminal, 22 - 16 AWG, #8 / M4 Stud, 4.34 mm Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | metal | |
| AWG cross-section | AWG 22 to 16 | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C | |
| Version | ring cable lug | |
| Cable cross-section | 0.26-1.65 mm² | |
| Thread size | M4 | |
| Isolated | No | |
| Hole diameter | 4.34 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
