1577639-1 | AMP
Insulated ring cable lug, 2.08-3.31 mm², AWG 14 to 12, 4.34 mm, M4, beige, 1577639-1
Unit Price (€ / pc.)
6.7354 € *
Available in 5 Days: 465 pcs. - if ordered today
Total Price:
6.74 € *
Price list
Quantity
Price per unit*
1 pcs.
6.7354 €
10 pcs.
6.2832 €
50 pcs.
5.8905 €
100 pcs.
5.5454 €
*incl. VAT plus shipping costs
Subject to prior sale

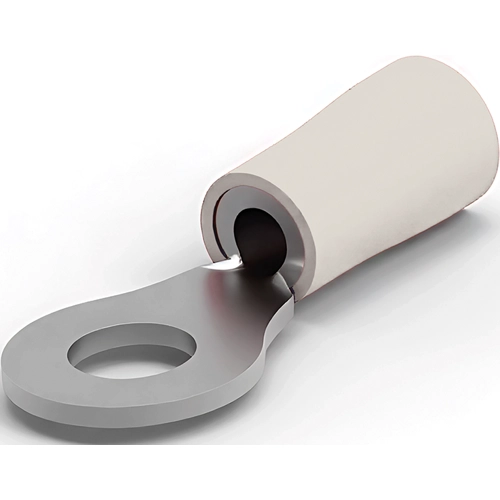

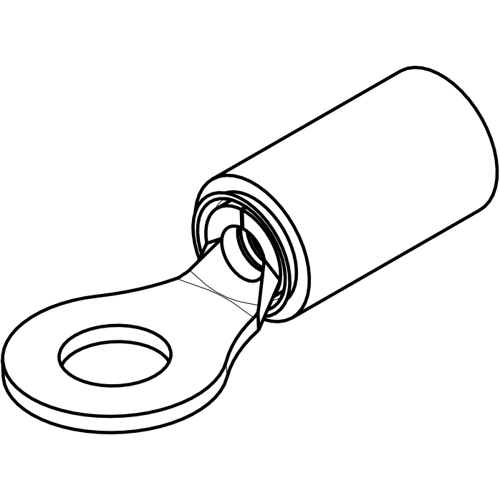

Ring cable lug, 1577639-1, AMP
Closed Ring Tongue Terminal, 14-12 AWG, #8 / M4 Stud, 4.34 mm Stud Diameter, Closed Barrel, Straight, Nickel Plating, STRATO-THERM.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | beige | |
| Thread size | M4 | |
| Hole diameter | 4.34 mm | |
| AWG cross-section | AWG 14 to 12 | |
| max. operating temperature | 260 °C | |
| Material | copper, nickel-plated | |
| Material Insulation | PEEK | |
| Version | ring cable lug | |
| Isolated | Yes | |
| Cable cross-section | 2.08-3.31 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
