320559 | AMP

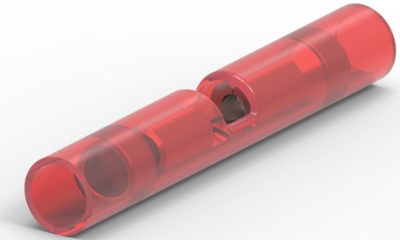

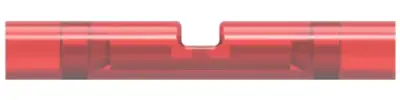

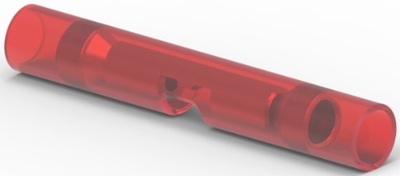

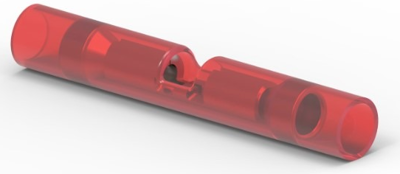

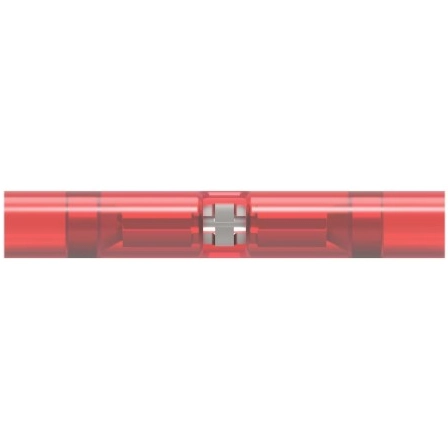

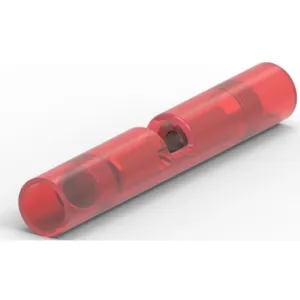

Butt connectorwith insulation, 0.3-1.42 mm², AWG 22 to 16, red, 32.13 mm
Images may differ
Unit Price (€ / pc.)
1.2852 € *
Available: 0 pcs.
Next delivery: 350 pcs. on 2024-01-10
Leadtime: 25 Weeks **
Add to Cart
Total Price:
1.29 € *
Quantity
Price per unit*
10 pcs.
1.2852 €
50 pcs.
1.1305 €
250 pcs.
0.9758 €
1000 pcs.
0.8568 €
2500 pcs.
0.7854 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Butt Splice, insulated, with window, type AMP/AMP 0-032.
Made of tinned copper, crimp connection
Technical specifications
| Version | butt connector | |
| AWG cross-section | AWG 22 to 16 | |
| Colour | red | |
| Isolated | Yes | |
| Length | 32.13 mm | |
| Cable cross-section | 0.3-1.42 mm² | |
| Material | copper, tin-plated | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Variations
Search results: 1 item in 5 variations
*incl. VAT plus shipping costs
Order No.:
07F6954
Manufacturer:
AMP
Manufacturer SKU:
320562
Total Price: 9.52 € *
10 pcs.
0.9520 €
50 pcs.
0.8330 €
Available: 200 pcs.
Leadtime: 8 Weeks **
1.25-2.0 mm²
32.13 mm
blue
AWG 16 to 14
copper, tin-plated
butt connector
Yes
Order No.:
07F6956
Manufacturer:
AMP
Manufacturer SKU:
320570
Total Price: 2.13 € *
1 pcs.
2.1301 €
25 pcs.
1.8207 €
100 pcs.
1.6660 €
250 pcs.
1.5827 €
1000 pcs.
1.4518 €
Available: 264 pcs.
Leadtime: 32 Weeks **

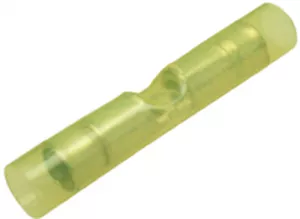

3.0-6.0 mm²
42.06 mm
yellow
AWG 12 to 10
copper, tin-plated
butt connector
Yes
Order No.:
07F6950
Manufacturer:
AMP
Manufacturer SKU:
323994
Total Price: 2.03 € *
1 pcs.
2.0349 €
25 pcs.
1.7255 €
100 pcs.
1.5827 €
250 pcs.
1.5113 €
1000 pcs.
1.3804 €
Available: 653 pcs.
Leadtime: 39 Weeks **

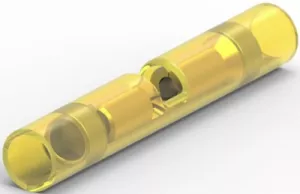

0.12-0.24 mm²
22.61 mm
yellow
AWG 26 to 22
copper, tin-plated
butt connector
Yes
Order No.:
07F6960
Manufacturer:
AMP
Manufacturer SKU:
603502-3
30 pcs.
3.2844 €
200 pcs.
2.4871 €
Available: 0 pcs.
Available in 5 Days: 62 pcs.
Leadtime: 5 Days **
0.3-0.9 mm²
43 mm
red
AWG 22 to 16
copper, tin-plated
butt connector
Yes
Order No.:
07F6952
Manufacturer:
AMP
Manufacturer SKU:
320559
10 pcs.
1.2852 €
50 pcs.
1.1305 €
250 pcs.
0.9758 €
1000 pcs.
0.8568 €
2500 pcs.
0.7854 €
Available: 0 pcs.
Next delivery: 350 pcs. on 2024-01-10
Leadtime: 25 Weeks **
0.3-1.42 mm²
32.13 mm
red
AWG 22 to 16
copper, tin-plated
butt connector
Yes
