794279-1 | AMP

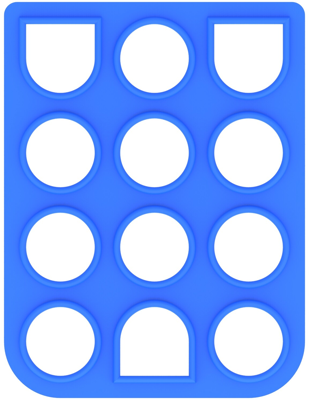

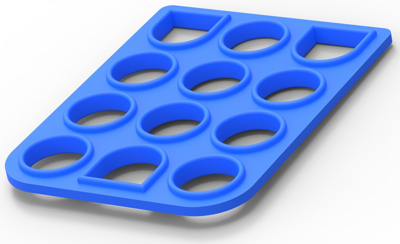

Intermediate seal for Universal MATE-N-LOK series, 794279-1

Order No.: 71F7230
EAN: 4099891035471
MPN:
794279-1
0-0794279-1
794279-1 AMP Accessories for PCB Connectors, Connector Systems Image 1
794279-1 AMP Accessories for PCB Connectors, Connector Systems Image 2
794279-1 AMP Accessories for PCB Connectors, Connector Systems Image 3
794279-1 AMP Accessories for PCB Connectors, Connector Systems Image 4
794279-1 AMP Accessories for PCB Connectors, Connector Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.2967 € *
Available in 5 Days: 533 pcs. - if ordered today
Total Price:
2.30 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2967 €
10 pcs.
2.0944 €
50 pcs.
1.8802 €
100 pcs.
1.7017 €
*incl. VAT plus shipping costs
Subject to prior sale

Silicon seals for Universal Mate-N-Lok connectors, type 0-079.

For converting the connectors described above into splashproof and immersion-proof connector systems by means of two cable seals and one intermediate sealing; Color: blue. Degree of protection: IP 57 insulated diameter of min. 2.8 to 3.3 mm, IP 56 insulated diameter of 1.5 to 2.8 mm. The Mate-N-Lok dummy pin can be used to seal unused connector chambers. Note: two cable seals and one intermediate seal are required for seal-tight connections.

Technical attributes (type, for number of poles, type of sealing): 0–0794279–1, 12–pole, interface seal

Technical specifications
Suitable for Universal MATE-N-LOK series
Product type intermediate seal
Logistics
Country of origin US
Customs tariff number 39269097
Compliance
RoHS conform Yes
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
SVHC free No
Date of RoHS guidelines 3/31/15
