401508 | ALPS

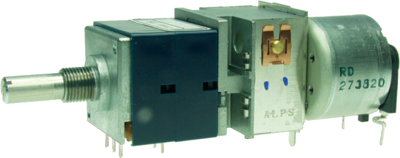

Motorized dual potentiometer, 10 kΩ, 0.05 W, linear, solder pin, 401508
Unit Price (€ / pc.)
20.3252 € *
Available: 10 pcs.
Leadtime: 30 Weeks **
Potentiometer, RK27112MC 10K, ALPS
This remote-controllable potentiometer supports motor driving and manual operation. It is suitable for various audio equipment.
Applications
- For controlling volume in amplifiers CD players, karaoke machines and radio cassettes

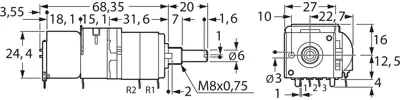

Technical specifications
| Track Taper | linear | |
| Assembly | angled | |
| Width | 68.35 mm | |
| Mechanic rotary range | 300 ° | |
| Power | 0.05 W | |
| Length | 27 mm | |
| Contact distance | RM 5 | |
| axle diameter | 6 mm | |
| Version | motorized dual potentiometer | |
| min. operating temperature | -10 °C | |
| Connection | solder pin | |
| max. operating temperature | 70 °C | |
| ohmic resistance | 10 kΩ |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85334010 |
| Original Packaging | Ammopack with 200 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
