STEC11B03 | ALPS

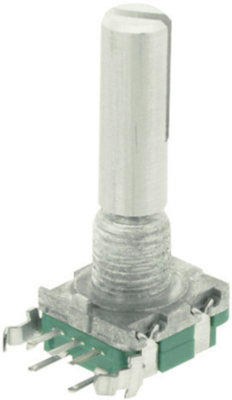

Incremental encoder, 5 V, impulses 15, STEC11B03
Active
Product by ALPS at Bürklin Elektronik
Incremental encoders, type ALPS STEC.
11 mm basic dimension, depending on the type also with integrated momentary action switch, snap-in type for PCB mounting, with metal shaft, vertical (vertical) or horizontal (horizontal) version; Momentary action switch: actuating travel 0.5 mm. Shaft: 6.0 mm. Rotation cycles: 15000. Rated voltage/ rated current: 5.0 VDC/10 mA. Holding voltage: 300 VAC. Insulation resistance: min. 10 Mohm (300 VDC).
With 15 pulses and 30 detents.
With slotted round shaft, D 6.0 mm, L 25 mm.
Technical attributes (type, mounting position, version): STEC11B03, vertical mounting, with momentary action switch
| Version | Incremental encoder | |
| Voltage | 5 V | |
| Pulses per revolution | 15 |
| Country of origin | JP |
| Customs tariff number | 85365015 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
