63250-01600/5K LIN | ALPHA

Film potentiometer, 5 kΩ, 0.2 W, linear, solder pin, 63250-01600/5K LIN

Order No.: 75E822
EAN: 4099879974181
MPN:
63250-01600/5K LIN
Series: ALPHASTAT 16

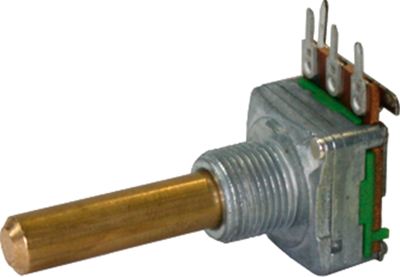

63250-01600/5K LIN ALPHA Potentiometers Image 1

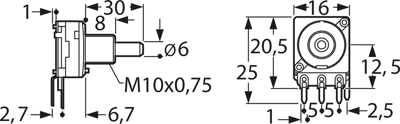

63250-01600/5K LIN ALPHA Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
6.1047 € *
Available: 146 pcs.
Total Price:
6.10 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1047 €
10 pcs.
5.3669 €
100 pcs.
4.7243 €
250 pcs.
4.5220 €
1000 pcs.
4.2364 €
*incl. VAT plus shipping costs
Subject to prior sale

Film potentiometers, type ALPHASTAT 16 63250-016.

6.0 mm metal shaft, for PCB mounting; Shaft length: 30 mm. Adjustment range: 270° ±5.0 %. Bushing mount: M 10 x 0.75 mm.

Linear.

Load rating: 0.2 W.

Type: 5K0

Technical specifications
Filter Property Value
Track Taper linear
Assembly angled
Power 0.2 W
Connection solder pin
Mechanic rotary range 270 °
max. operating temperature 70 °C
Version film potentiometer
Width 16 mm
ohmic resistance 5 kΩ
Contact distance RM 5
min. operating temperature -25 °C
axle diameter 6 mm
Length 20.5 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85334010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 6/8/11
RoHS conform Yes
