63250-01600/100K LIN | ALPHA

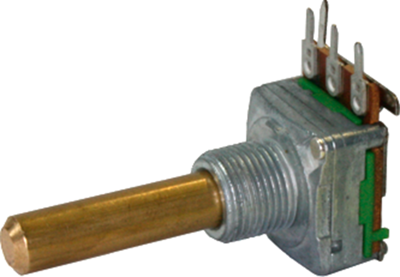

Film potentiometer, 100 kΩ, 0.2 W, linear, Solder pin, 63250-01600/100K LIN
Active
Total price
(
4.0817 €
* / pcs.)
4.08 €
Available: 54 pcs.
Quantity
Price per unit*
1 pcs.
4.0817 €
5 pcs.
3.7009 €
25 pcs.
3.5105 €
75 pcs.
3.3439 €
150 pcs.
3.2368 €
*incl. VAT plus
shipping costs
Please send price/quantity requests to info@buerklin.com
Description
Product by ALPHA at Bürklin Elektronik
Film potentiometers, type ALPHASTAT 16 63250-016.

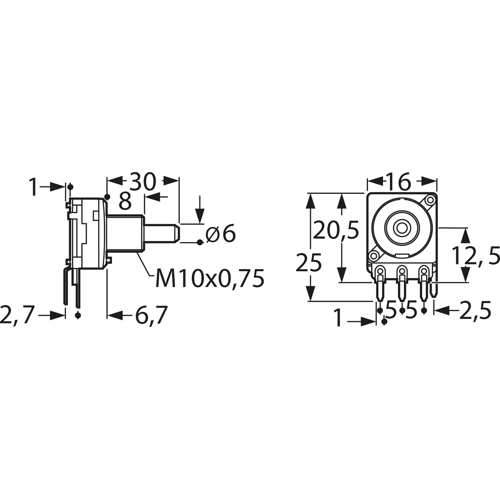

6.0 mm metal shaft, for PCB mounting; Shaft length: 30 mm. Adjustment range: 270° ±5.0 %. Bushing mount: M 10 x 0.75 mm.
Linear.
Load rating: 0.2 W.
Type: 100K
Technical specifications
| ohmic resistance | 100000 Ω | |
| Connection | Solder pin | |
| Version | film potentiometer | |
| Width | 16 mm | |
| Mechanic rotary range | 270 ° | |
| axle diameter | 6 mm | |
| Contact distance | RM 5 | |
| Length | 20.5 mm | |
| Power | 0.2 W | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -25 °C | |
| Assembly | angled | |
| Track Taper | linear |
Logistics
| Country of origin | CN |
| Customs tariff number | 85334010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
Download
Variations
Order No.:
75E824
Manufacturer:
ALPHA
Manufacturer SKU
63250-01600/10K LIN
1 pcs.
4.0936 €
5 pcs.
3.7247 €
25 pcs.
3.5343 €
75 pcs.
3.3558 €
150 pcs.
3.2487 €
4.09 € *
Available: 52 pcs.
10000 Ω
film potentiometer
-25 °C
RM 5
6 mm
16 mm
20.5 mm
angled
Solder pin
linear
70 °C
0.2 W
Order No.:
75E826
Manufacturer:
ALPHA
Manufacturer SKU
63250-01600/100K LIN
1 pcs.
4.0817 €
5 pcs.
3.7009 €
25 pcs.
3.5105 €
75 pcs.
3.3439 €
150 pcs.
3.2368 €
4.08 € *
Available: 54 pcs.
100000 Ω
film potentiometer
-25 °C
RM 5
6 mm
16 mm
20.5 mm
angled
Solder pin
linear
70 °C
0.2 W
Order No.:
75E804
Manufacturer:
ALPHA
Manufacturer SKU
63250-01400/10K LIN
1 pcs.
4.0936 €
5 pcs.
3.7247 €
25 pcs.
3.5343 €
75 pcs.
3.3558 €
150 pcs.
3.2487 €
4.09 € *
Available: 45 pcs.
10000 Ω
film potentiometer
-25 °C
RM 5
4 mm
20 mm
16 mm
angled
Solder pin
linear
70 °C
0.2 W
Order No.:
75E822
Manufacturer:
ALPHA
Manufacturer SKU
63250-01600/5K LIN
1 pcs.
3.9865 €
5 pcs.
3.6295 €
25 pcs.
3.4391 €
75 pcs.
3.2725 €
150 pcs.
3.1654 €
3.99 € *
Available: 216 pcs.
5000 Ω
film potentiometer
-25 °C
RM 5
6 mm
16 mm
20.5 mm
angled
Solder pin
linear
70 °C
0.2 W
Order No.:
75E812
Manufacturer:
ALPHA
Manufacturer SKU
63250-01400/10K POSLOG
1 pcs.
4.0936 €
5 pcs.
3.7247 €
25 pcs.
3.5343 €
75 pcs.
3.3558 €
150 pcs.
3.2487 €
4.09 € *
Available: 25 pcs.
10000 Ω
film potentiometer
-25 °C
RM 5
4 mm
20 mm
16 mm
angled
Solder pin
logarithmic
70 °C
0.05 W
Order No.:
75E832
Manufacturer:
ALPHA
Manufacturer SKU
63250-01600/10K POSLOG
25 pcs.
3.7128 €
10000 Ω
film potentiometer
-25 °C
RM 5
6 mm
16 mm
20.5 mm
angled
Solder pin
logarithmic
70 °C
0.05 W
Order No.:
75E810
Manufacturer:
ALPHA
Manufacturer SKU
63250-01400/5K POSLOG
25 pcs.
3.7128 €
5000 Ω
film potentiometer
-25 °C
RM 5
4 mm
20 mm
16 mm
angled
Solder pin
logarithmic
70 °C
0.05 W
Order No.:
75E800
Manufacturer:
ALPHA
Manufacturer SKU
63250-01400/1K LIN
1 pcs.
4.0103 €
5 pcs.
3.6414 €
25 pcs.
3.4629 €
75 pcs.
3.2844 €
150 pcs.
3.1773 €
4.01 € *
Available: 32 pcs.
1000 Ω
film potentiometer
-25 °C
RM 5
4 mm
20 mm
16 mm
angled
Solder pin
linear
70 °C
0.2 W
Order No.:
75E806
Manufacturer:
ALPHA
Manufacturer SKU
63250-01400/100K LIN
25 pcs.
3.7128 €
100000 Ω
film potentiometer
-25 °C
RM 5
4 mm
20 mm
16 mm
angled
Solder pin
linear
70 °C
0.2 W
Order No.:
75E828
Manufacturer:
ALPHA
Manufacturer SKU
63250-01600/1K POSLOG
25 pcs.
3.7128 €
1000 Ω
film potentiometer
-25 °C
RM 5
6 mm
16 mm
20.5 mm
angled
Solder pin
logarithmic
70 °C
0.05 W
Order No.:
75E830
Manufacturer:
ALPHA
Manufacturer SKU
63250-01600/5K POSLOG
0 pcs.
0.00 €
0.00 € *
Currently not in stock, we will order for you
5000 Ω
film potentiometer
-25 °C
RM 5
6 mm
16 mm
20.5 mm
angled
Solder pin
logarithmic
70 °C
0.05 W
Order No.:
75E820
Manufacturer:
ALPHA
Manufacturer SKU
63250-01600/1K LIN
1 pcs.
4.2364 €
10 pcs.
3.8199 €
25 pcs.
3.4510 €
50 pcs.
2.9393 €
200 pcs.
2.7132 €
4.24 € *
Available: 35 pcs.
1000 Ω
film potentiometer
-25 °C
RM 5
6 mm
16 mm
20.5 mm
angled
Solder pin
linear
70 °C
0.2 W
