63250-01600/10K POSLOG | ALPHA

Film potentiometer, 10 kΩ, 0.05 W, logarithmisch, solder pin, 63250-01600/10K POSLOG

Order No.: 75E832
EAN: 4099879974235
MPN:
63250-01600/10K POSLOG
Series: ALPHASTAT 16

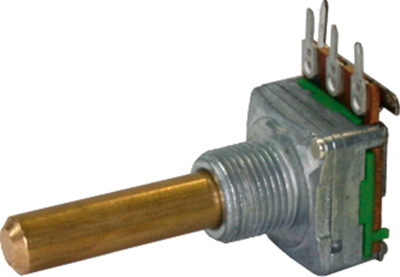

63250-01600/10K POSLOG ALPHA Potentiometers Image 1

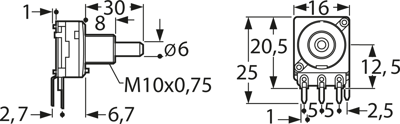

63250-01600/10K POSLOG ALPHA Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
4.2007 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
105.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
4.2007 €

Film potentiometers, type ALPHASTAT 16 63250-016.

6.0 mm metal shaft, for PCB mounting; Shaft length: 30 mm. Adjustment range: 270° ±5.0 %. Bushing mount: M 10 x 0.75 mm.

Positive logarithmic.

Load rating: 0.05 W.

Type: 10K

Technical specifications
Filter Property Value
Track Taper logarithmic
Assembly angled
Power 0.05 W
Connection solder pin
Mechanic rotary range 270 °
max. operating temperature 70 °C
Version film potentiometer
Width 16 mm
ohmic resistance 10 kΩ
Contact distance RM 5
min. operating temperature -25 °C
axle diameter 6 mm
Length 20.5 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85334010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 6/8/11
RoHS conform Yes
