01366 | ALFRA

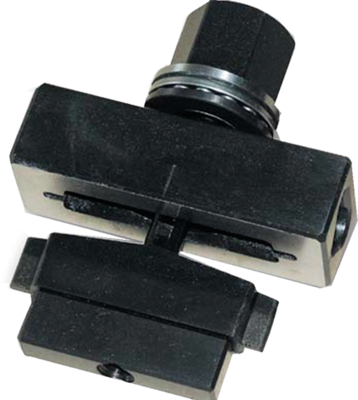

Sheet metal punch, 01366, 19.8 x 11.3 mm, 9 poles
Active
Product by ALFRA at Bürklin Elektronik
Sheet metal punches for sub-D connector recesses, type Alfra 013.
Operated with wrench. For punching out sections for 9- to 37-pole Sub-D connectors for mounting from the rear side; Sheet thickness (standard steel St 37): max. 2.0 mm (25-pole and 37-pole, max. 1.75 mm).

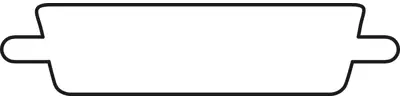

Technical attributes (type, dimension length x width, number of poles of the connector): 01366, 19.8 x 11.3 mm, 9 poles
| Hole diameter | 11.3 mm | |
| Perforation | round | |
| Cutting capacity | 2 mm |
| Country of origin | DE |
| Customs tariff number | 82073010 |
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
