01336 | ALFRA

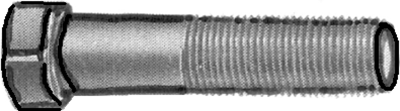

01336, thrust bolt D 9.5 x 50 mm
Images may differ
Total price
(
4.4744 €
* / pcs.)
4.47 €
Available: 2 pcs.
Description
Product by ALFRA at Bürklin Elektronik
Replacement thrust bolts for standard round sheet metal punches, type Alfra 013.
For steel sheet thickness to 2.0 mm
Type: 01336, thrust bolt D 9.5 x 50 mm
Technical specifications
| Thread size | M25 | |
| Hole diameter | 35 mm | |
| Perforation | round | |
| Cutting capacity | 2 mm |
Logistics
| Country of origin | DE |
| Customs tariff number | 73181588 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Download
Variations
1 item in 2 variations
*incl. VAT plus
shipping costs
1 pcs.
4.4744 €
4.47 € *
Available: 2 pcs.
round
2 mm
35 mm
M25
1 pcs.
3.7128 €
3.71 € *
Available: 3 pcs.
round
2 mm
40 mm
*incl. VAT plus
shipping costs
**Subject to prior sale
