01129 | ALFRA

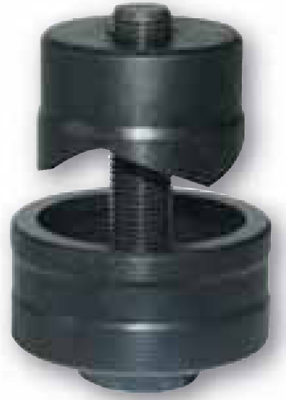

Sheet metal punch, 01129, SD 37.0, Sr 19 x 55, Pg 29
Product by ALFRA at Bürklin Elektronik
Sheet metal punches for circular recesses, type Alfra 01.

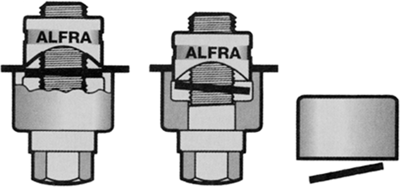

Mainly in Pg and metric sizes, in combination with hydraulic and hand punch or an open-end wrench, for punching sheet metal (iron, aluminum, copper, brass, etc.), hard-fiber boards and plastics, rubber, etc; Sheet metal thickness: 2.0 mm (type 01129, 3.0mm) in steel sheet, thicker in other types of metal plates depending on quality. The punch is in burnished special tool steel and consists of a die, the stamp and a thrust bolt.
Technical attributes (type, stamp diameter (SD), screw (Sr), for heavy gage conduit (Pg)): 01129, SD 37.0, Sr 19 x 55, Pg 29
| Thread size | PG29 | |
| Hole diameter | 37 mm | |
| Perforation | round | |
| Cutting capacity | 2 mm |
| Country of origin | DE |
| Customs tariff number | 82073010 |
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
