01045 | ALFRA
Metal plate hole punch, round, PG16, 01045
Order No.: 06L1331
EAN: 4099891378950
MPN:
01045
Unit Price (€ / pc.)
19.0995 € *
Available: 3 pcs.

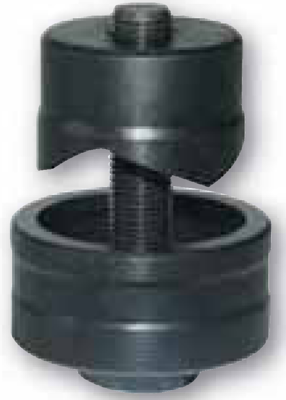

Sheet metal punches for circular recesses, type Alfra 01.

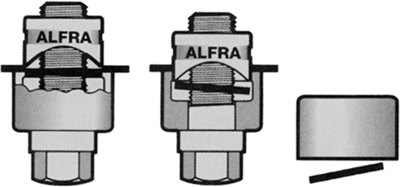

Mainly in Pg and metric sizes, in combination with hydraulic and hand punch or an open-end wrench, for punching sheet metal (iron, aluminum, copper, brass, etc.), hard-fiber boards and plastics, rubber, etc; Sheet metal thickness: 2.0 mm (type 01129, 3.0mm) in steel sheet, thicker in other types of metal plates depending on quality. The punch is in burnished special tool steel and consists of a die, the stamp and a thrust bolt.
Technical attributes (type, stamp diameter (SD), screw (Sr), for heavy gage conduit (Pg)): 01045, SD 22.5, Sr 9.5 x 40, Pg 16
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thread size | PG16 | |
| Hole diameter | 22.5 mm | |
| Cutting capacity | 2 mm | |
| Perforation | round | |
| Product type | metal plate hole punch |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 82073010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
