3-5435640-9 | Alcoswitch

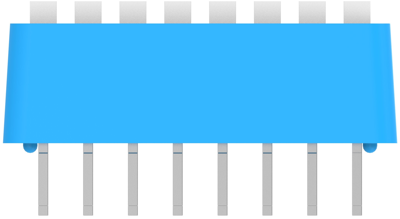

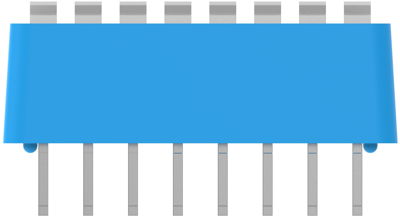

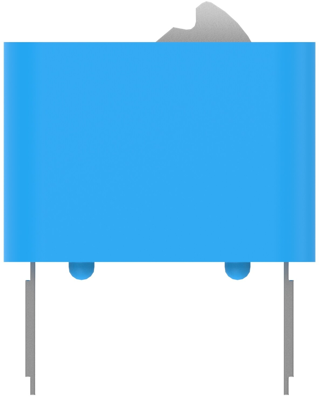

DIP switche, Off-On, 8 pole, straight, 1 A/40 VDC, 3-5435640-9
Order No.: 17G667
EAN: 4099889204223
MPN:
3-5435640-9
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.5942 € *
Available: 120 pcs.
Available in 12 Days: 3,598 pcs. - if ordered today

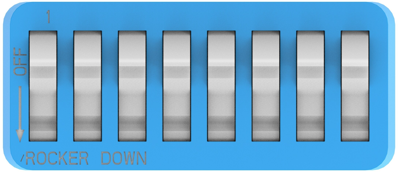

Coding rocker switches, type TE Connectivity/AMP 3-54356.
With open rockers. Max; rated current/rated voltage: not switched 1.0 A/40 VDC, switched 60/15 mA at 5.0/24 VDC. Contact resistance (towards the end/start): 100/50 mohm, at 50 mV open-circuit, 10 mA. Dielectric strength: min. 500 VDC. Capacitance: 5.0 pF. Operating temperatures: –15 to +85 °C. Housing and switching element: polyester, thermoplastic to UL 94 VDC0. Contacts: copper alloy, gold-plated on nickel. Housing: blue. Rockers and labeling: white.
Technical attributes (type, number of switches, dimension A): 3-5435640-9, 8 switches, A 22.35 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DIP switche | |
| Shift position | Off-On | |
| Pin number | 8 pole | |
| Actuation | on top | |
| Design | straight | |
| Connection | PCB pin | |
| contact surface | gold-plated | |
| Grid | 2.54 mm | |
| Breaking capacity | 1 A/40 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 14 pieces |
| Country of origin | TH |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
