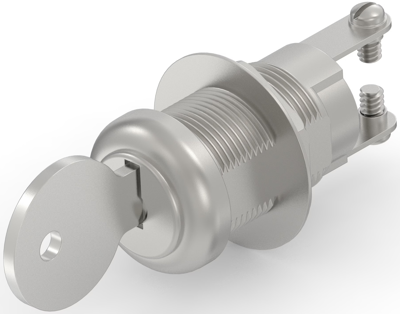

Frame Material: Stainless Steel, Configuration (Pole-Throw): Single Pole - Single Throw, Operating Function: Position 1 Off,Position 2 (On), Panel Cutout Size: 19.3 x 16.3 mm, Number of Keylock Switch Positions: 2, Contact Resistance: 50 mΩ, Keylock Switch Voltage Rating: 110 VAC,120 VAC, Actuator Material: Brass, Contact Timing: Non-Shorting, Keylock Switch Contact Current Rating: 1 A, Contact Finish: Silver, Lock Body: Zinc Alloy, Keylock Switch Mounting Type: Panel, Cylinder Material: Zinc Alloy, Remove Key: Position 1, Oil-Tight: No, Life Expectancy: 10000 Cycles, Soldering Type: Hand
Connection | screw connection | |
Version | groping | |
Rotation angle | 90° | |
Installation diameter | 19.2 mm | |
contact surface | silver-plated | |
Pin number | 1 pole | |
Latching switching function | On-Off | |
Breaking capacity | 1 A/120 VAC |
Country of origin | BR |
Customs tariff number | 85365080 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | No |
Substance description | Lead |
