2-1437597-3 | Alcoswitch

2-1437597-3

Order No.: 19G1492
EAN: 4099889201079
MPN:
2-1437597-3
2SWK132AL101
Series: SWK

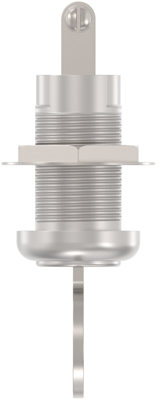

2-1437597-3 Alcoswitch Key Switches Image 1

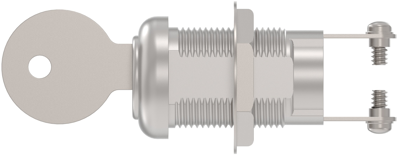

2-1437597-3 Alcoswitch Key Switches Image 2

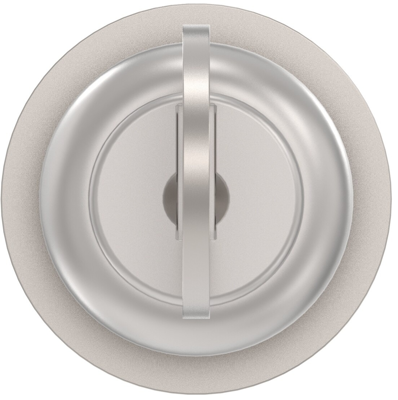

2-1437597-3 Alcoswitch Key Switches Image 3

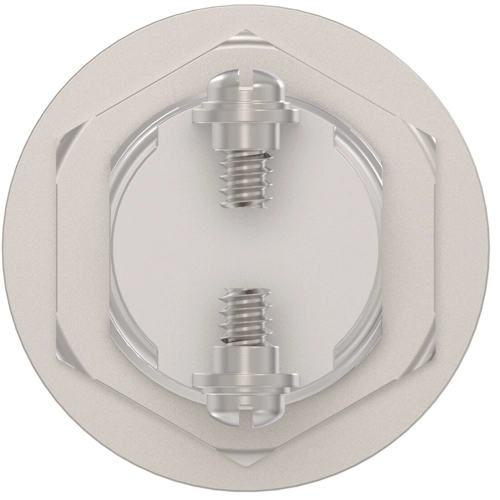

2-1437597-3 Alcoswitch Key Switches Image 4
2-1437597-3 Alcoswitch Key Switches Image 5
Image may differ
Unit Price (€ / pc.)
76.5646 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
76.56 € *
Price list
Quantity
Price per unit*
1 pcs.
76.5646 €
2 pcs.
71.6261 €
5 pcs.
67.2945 €
10 pcs.
62.5464 €
*incl. VAT plus shipping costs
Subject to prior sale

Keylock Switch, 2-1437597-3, Alcoswitch

Frame Material: Stainless Steel, Configuration (Pole-Throw): Single Pole - Single Throw, Operating Function: Position 1 Off,Position 2 On, Panel Cutout Size: 19.3 x 16.3 mm, Number of Keylock Switch Positions: 2, Contact Resistance: 50 mΩ, Keylock Switch Voltage Rating: 110 VAC,120 VAC, Actuator Material: Brass, Contact Timing: Non-Shorting, Keylock Switch Contact Current Rating: 1 A, Contact Finish: Silver, Lock Body: Zinc Alloy, Keylock Switch Mounting Type: Panel, Cylinder Material: Zinc Alloy, Remove Key: Position 1 or 2, Oil-Tight: No, Life Expectancy: 10000 Cycles, Soldering Type: Hand

Technical specifications
Filter Property Value
Latching switching function On-Off
Rotation angle 90°
Installation diameter 19.2 mm
Breaking capacity 1 A/120 VAC
Pin number 1 pole
Connection screw connection
contact surface silver-plated
Version groping
Logistics
Property Value
Customs tariff number 85365019
Country of origin CN
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
