1437597-1 | Alcoswitch
1437597-1
Order No.: 19G1490
EAN: 4099889201062
MPN:
1437597-1
2SKF131AEL01
Unit Price (€ / pc.)
62.5107 € *
Standard delivery time from the manufacturer is: 16 Weeks

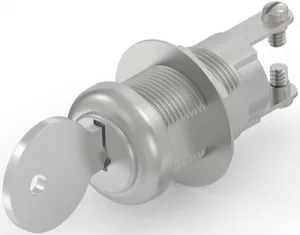

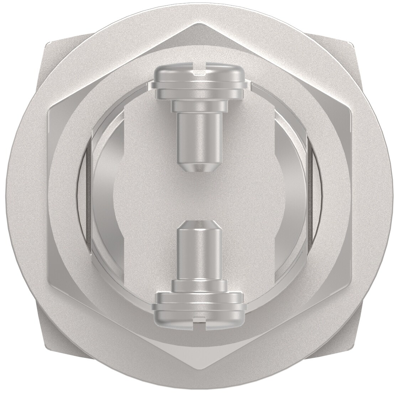

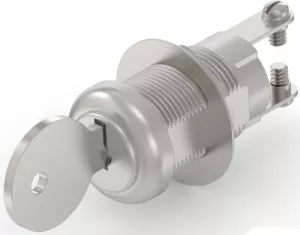

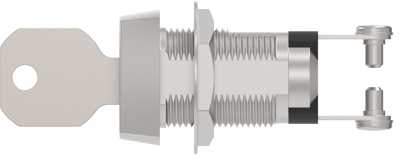

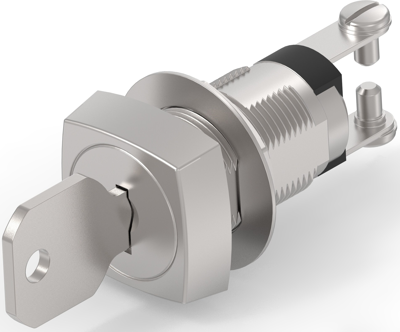

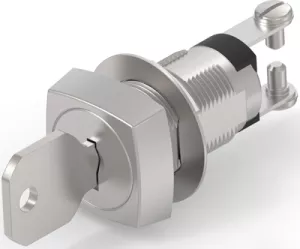

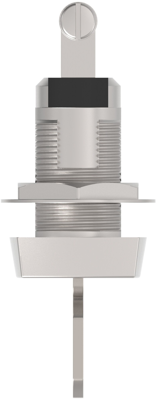

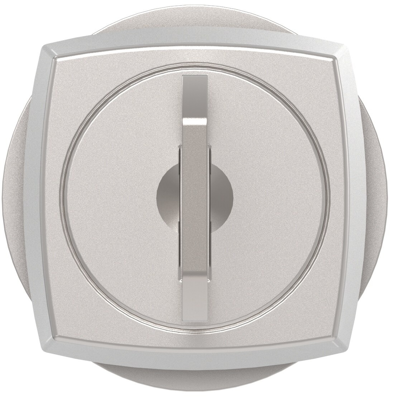

Keylock Switch, 1437597-1, Alcoswitch
Frame Material: Brushed Chrome, Configuration (Pole-Throw): Single Pole - Single Throw, Operating Function: Position 1 Off,Position 2 On, Panel Cutout Size: 19.3 x 16.3 mm, Number of Keylock Switch Positions: 2, Contact Resistance: 50 mΩ, Keylock Switch Voltage Rating: 110 VAC,120 VAC, Actuator Travel: 90°, Contact Timing: Non-Shorting, Keylock Switch Contact Current Rating: 1 A, Contact Finish: Silver, Lock Body: Zinc Alloy, Keylock Switch Mounting Type: Panel, Cylinder Material: Zinc Alloy, Remove Key: Position 1, Oil-Tight: No, Life Expectancy: 10000 Cycles, Soldering Type: Hand
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Latching switching function | On-Off | |
| Pin number | 1 pole | |
| contact surface | silver-plated | |
| Breaking capacity | 1 A/120 VAC | |
| Version | groping | |
| Rotation angle | 90° | |
| Installation diameter | 19.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
