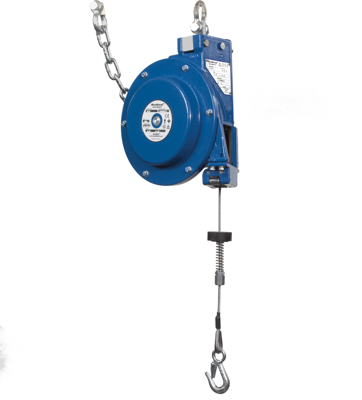

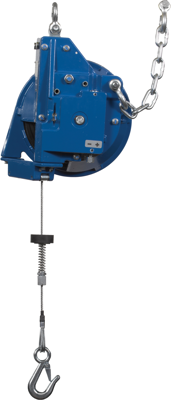

Aero-Motive Heavy Industrial Duty JA Balancer, Weight Range 24.0-32.0 kg (53.0-70.0 lb), 2.13 m (7.0') Travel
JA Series balancers, equipped with one power spring, were designed specifically for Heavy Industrial Applications and are ideal for balancing industrial tools weighing up to 100 lb [45 kg]. Tools attached to JA Series balancers become almost weightless in the hands of operators, allowing maximum freedom to work more efficiently and reduce fatigue through_x0002_out work shifts.
Locking | false | |
Version | balancer | |
Shell Material | aluminum | |
Weight | 17.5 kg | |
Stroke | 2.1 m | |
Rope Diameter | 4.76 mm | |
Fall protection | Yes | |
Spring fracture safety device | Yes | |
Manual locking | Yes | |
Rope pullout | 2.1 m | |
Max Load capacity | 32 kg | |
Min Load capacity | 24 kg | |
Suspension Rope | galvanized |
Country of origin | DE |
Customs tariff number | 84289090 |
RoHS conform | not_relevant |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
