40JA | Aero-Motive
Balancer, 40JA, load capacity (min/max) 13 to 20 kg, stroke 2.1 m, without locking, 1301720189
Unit Price (€ / pc.)
1,652.3031 € *
Available: 13 pcs.
Balancer, 1301720189, Aero-Motive

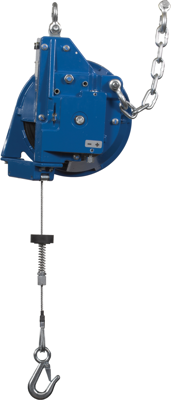

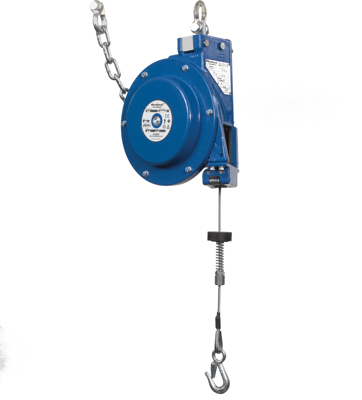

Aero-Motive Heavy Industrial Duty JA Balancer with Upper / Lower Bullard Hooks and Upper Shackle Assembly, Weight Range 13.0-20.0 kg (29.0-45.0 lb), 2.13 m (7.0') Travel
JA Series balancers, equipped with one power spring, were designed specifically for Heavy Industrial Applications and are ideal for balancing industrial tools weighing up to 100 lb [45 kg]. Tools attached to JA Series balancers become almost weightless in the hands of operators, allowing maximum freedom to work more efficiently and reduce fatigue through_x0002_out work shifts.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rope Diameter | 4.76 mm | |
| Shell Material | aluminum | |
| Rope pullout | 2.1 m | |
| Max Load capacity | 20 kg | |
| Min Load capacity | 13 kg | |
| Spring fracture safety device | Yes | |
| Weight | 17.5 kg | |
| Suspension Rope | galvanized | |
| Manual locking | Yes | |
| Fall protection | Yes | |
| Stroke | 2.1 m | |
| Locking | without locking | |
| Product type | balancer |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84253900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
