230LA | Aero-Motive
Balancer, 230LA, load capacity (min/max) 95 to 107 kg, stroke 2.1 m, without locking, 1301720118
Balancer, 1301720118, Aero-Motive

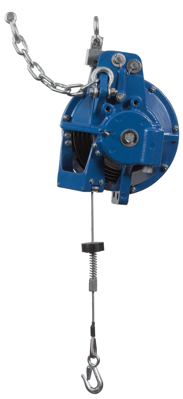

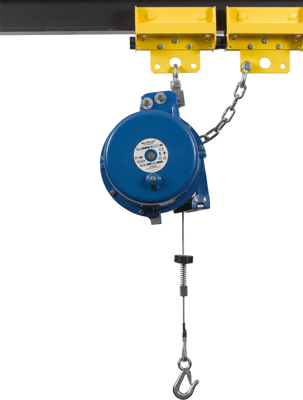

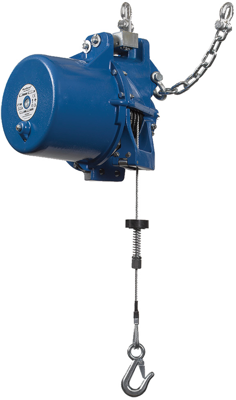

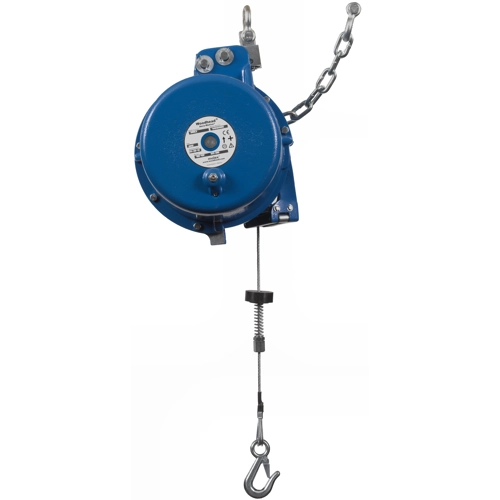

Aero-Motive Heavy Industrial Duty LA Balancer with Upper / Lower Bullard Hooks and Upper Shackle Assembly, Weight Range 95.0-107.0 kg (209.0-236.0 lb), 2.13 m (7.0') Travel
LA model Aero-Motive balancers are compact, ergonomic and cost-effective balancers in their weight class and are designed with a unique Automatic Safety Lock to prevent failures, especially when balancing loads within their weight capacity
Tools or loads attached to balancers become almost weightless in the hands of operators, allowing maximum freedom to work more efficiently and reduce fatigue throughout work shifts, leading to increased productivity. A true balance condition is achieved through an easy to use and precise power-spring tension control adjustment feature.
Features
- Containerized power spring
- High-pressure Aluminum casted housings
- Easy cable change-over feature
- Facilitates quick and safe tool changeover without risk of cable fly-back
| Filter | Property | Value |
|---|---|---|
| Rope Diameter | 4.76 mm | |
| Fall protection | Yes | |
| Min Load capacity | 95 kg | |
| Max Load capacity | 107 kg | |
| Locking | without locking | |
| Suspension Rope | galvanized | |
| Weight | 37.5 kg | |
| Stroke | 2.1 m | |
| Product type | balancer | |
| Spring fracture safety device | Yes | |
| Manual locking | Yes | |
| Shell Material | aluminum | |
| Rope pullout | 2.1 m |
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 84253900 |
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
