22FLRC | Aero-Motive
Retractor 22FLRC, 16-22LB/7.3-10KG, 8FT/2.4M
Unit Price (€ / pc.)
462.5411 € *
Available: 56 pcs.
Leadtime: 16 Weeks **

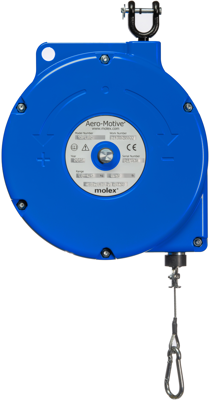

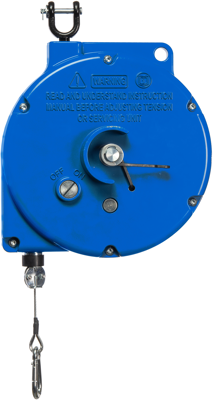

Retractor, 1301740009, Aero-Motive
Aero-Motive Heavy Industrial Duty Cast Aluminum Retractor with Ratchet Lock, Weight Range 3.6-10.0 kg (8.0-22.0 lb), 2.40 m (8.0') Travel
Retractors are designed to retract a tool or load when no force is applied on it. Constant downward force has to be applied in order to keep the suspended tool/load in position. The torque output of the rewind spring increases as the cable is pulled out of the unit, retracting the suspended tool/load to the uppermost adjusted position when released.
Field proven Aero-Motive® retractors feature power springs for excellent life cycles and ergonomics in virtually any industrial work space
Features
- New and improved power springs
- Provides excellent ergonomics and life cycles
- Durable stranded-steel aircraft cable features adjustable cable stop
- Increased durability Allows tools to be set at different positions/ heights
Technical specifications
| Locking | true | |
| Version | retractor | |
| Shell Material | aluminum | |
| Weight | 5.9 kg | |
| Stroke | 2.4 m | |
| Rope Diameter | 2.38 mm | |
| Fall protection | No | |
| Spring fracture safety device | No | |
| Manual locking | No | |
| Rope pullout | 2.4 m | |
| Max Load capacity | 10 kg | |
| Min Load capacity | 7.3 kg | |
| Suspension Rope | galvanized |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84253900 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
