10FLRCSC | Aero-Motive

Retractor, 10FLRCSC, load capacity (min/max) 1.8 to 4.5 kg, with locking, 1301740004

Order No.: 07L7765
EAN: 4099891448004
MPN:
10FLRCSC
1301740004
Series: FLRC

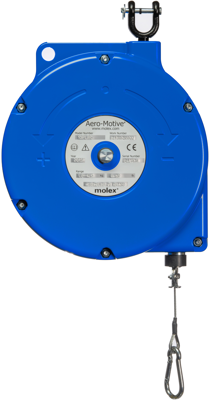

10FLRCSC Aero-Motive Spring Balancers Image 1

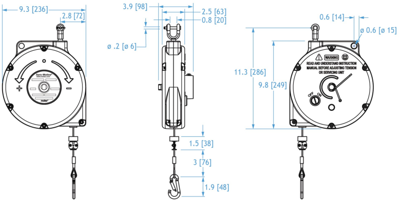

10FLRCSC Aero-Motive Spring Balancers Image 2

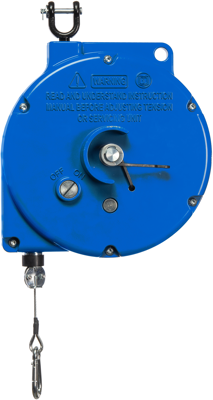

10FLRCSC Aero-Motive Spring Balancers Image 3
Image may differ
Unit Price (€ / pc.)
499.2169 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
499.22 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
499.2169 €

Retractor, 1301740004, Aero-Motive

Aero-Motive Heavy Industrial Duty Cast Aluminum Retractor with Ratchet Lock, Weight Range 1.8-4.5 kg (4.0-10.0 lb), 2.40 m (8.0') Travel

Retractors are designed to retract a tool or load when no force is applied on it. Constant downward force has to be applied in order to keep the suspended tool/load in position. The torque output of the rewind spring increases as the cable is pulled out of the unit, retracting the suspended tool/load to the uppermost adjusted position when released.

Field proven Aero-Motive® retractors feature power springs for excellent life cycles and ergonomics in virtually any industrial work space

Features

  • New and improved power springs
  • Provides excellent ergonomics and life cycles
  • Durable stranded-steel aircraft cable features adjustable cable stop
  • Increased durability Allows tools to be set at different positions/ heights
Technical specifications
Filter Property Value
Rope pullout 2.4 m
Manual locking No
Spring fracture safety device No
Max Load capacity 4.5 kg
Version retractor
Shell Material aluminum
Suspension Rope galvanized
Locking with locking
Min Load capacity 1.8 kg
Weight 5.9 kg
Fall protection Yes
Logistics
Property Value
Customs tariff number 84253900
Country of origin DE
Compliance
Property Value
SVHC free Yes
RoHS conform not_relevant
