100JA | Aero-Motive

Balancer, 100JA, load capacity (min/max) 40 to 45 kg, stroke 2.1 m, without locking, 1301720015

Order No.: 12P6559
EAN: 4099891449759
MPN:
100JA
1301720015
Series: JA

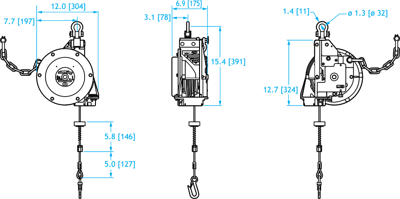

100JA Aero-Motive Spring Balancers Image 1

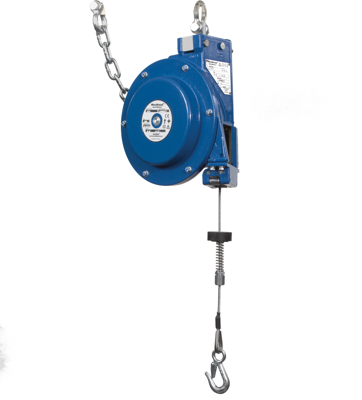

100JA Aero-Motive Spring Balancers Image 2

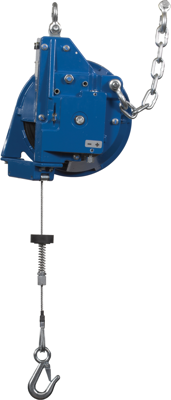

100JA Aero-Motive Spring Balancers Image 3
Image may differ
Unit Price (€ / pc.)
1,652.3031 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
1,652.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,652.3031 €

Balancer, 1301720015, Aero-Motive

Aero-Motive Heavy Industrial Duty JA Balancer, Weight Range 40.0-45.0 kg (88.0-100.0 lb), 2.13 m (7.0') Travel

JA Series balancers, equipped with one power spring, were designed specifically for Heavy Industrial Applications and are ideal for balancing industrial tools weighing up to 100 lb [45 kg]. Tools attached to JA Series balancers become almost weightless in the hands of operators, allowing maximum freedom to work more efficiently and reduce fatigue through_x0002_out work shifts.

Technical specifications
Version balancer
Stroke 2.1 m
Rope Diameter 4.76 mm
Weight 17.5 kg
Max Load capacity 45 kg
Min Load capacity 40 kg
Spring fracture safety device Yes
Rope pullout 2.1 m
Manual locking Yes
Fall protection Yes
Suspension Rope galvanized
Locking without locking
Shell Material aluminum
Logistics
Customs tariff number 84253900
Country of origin DE
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform not_relevant
