1003 SI/1 DS | Adels-Contact
Connection terminal, 1 pole, 4.0 mm², clamping points: 1, gray/black, screw connection, 16 A, 1003 SI/1 DS
Unit Price (€ / pc.)
1.6065 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

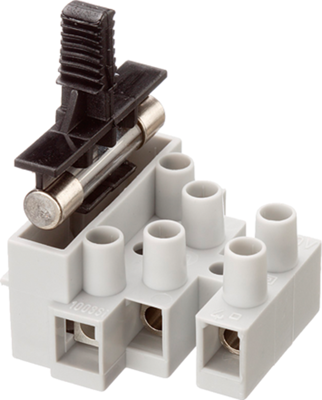

Terminal with 6.3 x 25/32 mm fuse holder, type Adels-Contact 1003 Si/1DS
1-pole, with wire protection.
Rated voltage VDE/UL: 500/300 V
Rated current (terminal): EN 60598/EN 60998 25/32 A
Rated current (fuse holder): EN 60127-6, 16 A
Rated cross-section: 4.0 mm²
Ambient temperatures terminal/fuse holder: max. +100/+70 °C
Stripping length: 7.5 to 8.0 mm
Insulator: polyamide 6.6, gray, inflammability class to UL 94 V-2
Technical specifications
| Version | connection terminal | |
| Pin number | 1 pole | |
| Cable cross-section | 4.0 mm² | |
| Number of terminals | 1 | |
| Colour | gray/black | |
| Connection | screw connection | |
| Rated current | 16 A | |
| AWG cross-section | AWG 22-10 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
