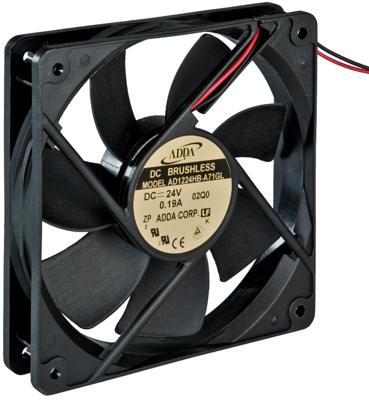

AD1224HB-A71GL | ADDA
DC axial fan, 24 V, 120 x 120 x 25 mm, 149.4 m³/h, 39.1 dB, ball bearing, ADDA, AD1224HB-A71GL
Unit Price (€ / pc.)
16.1126 € *
Available: 11 pcs.
Leadtime: 1 Week **
Total Price:
16.11 € *
Price list
Quantity
Price per unit*
1 pcs.
16.1126 €
10 pcs.
14.1848 €
50 pcs.
13.2209 €
150 pcs.
12.6378 €
500 pcs.
11.9952 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC Axial fan, AD1224HB-A71GL, ADDA
This AD1224HB-A71GL is a DC fan that is used for industrial purposes and has remarkable airflow performance. Due to the almost linear air performance characteristic, it is a fan for various applications. It is permanently protected against blockage and thermal overload. Due to the low rotor weight and precision balancing and has high shock and vibration resistance.
Features
- Direction of rotation is clockwise while viewed towards the rotor
- Protected against reverse polarity and blocking
- Electronic commutation completely integrated
- Frame material is made of glass filled polyester
Technical specifications
| Version | DC axial fan | |
| Width | 120 mm | |
| speed | 2200 1/s | |
| Height | 120 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 4.56 W | |
| Rated voltage | 24 V | |
| Sound pressure level | 39.1 db | |
| Depth | 25 mm | |
| Volume flow | 149.4 m³/h |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
