606000022 | Slide Switches and Coding Switches

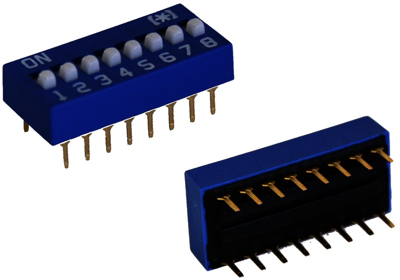

DIP switche, 8 pole, straight, 25 mA/24 VDC, 606000022
Unit Price (€ / pc.)
0.5712 € *
Available: 121 pcs.
Next delivery: 273 pcs. on 2026-06-26
Total Price:
5.71 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5712 €
21 pcs.
0.5117 €
63 pcs.
0.4641 €
189 pcs.
0.4165 €
*incl. VAT plus shipping costs
Subject to prior sale
Coding DIP switches, type MDS../MDP../MADR.
DIP switches; Grid: 2.54 mm. Rated voltage: 24 VDC. Rated current on-state/off-state: 25 mA/100 mA. Contact resistance: max. 50 mohm (new state). Insulation resistance: min. 1000 Mohm (at 500 VDC). Dielectric strength: 500 VDC (60 s). Capacitance: max. 5.0 pF. Contact material: gold-plated copper alloy. Operating temperatures: - 25 to +70 °C.
Top adjustment, type MDS.
Technical attributes (type, number of switches, dimension A): MDS 08, 8 switches, 21.8 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DIP switche | |
| Pin number | 8 pole | |
| Actuation | on top | |
| Design | straight | |
| Connection | PCB pin | |
| contact surface | gold-plated | |
| Grid | 2.54 mm | |
| Breaking capacity | 25 mA/24 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85365019 |
| Original Packaging | Bar with 21 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
