BEMUFLON PTFE-SCHLAUCH 10 X 8 MM NATUR | Insulating Tubes
Insulating tube, inside Ø 8 mm, transparent, PTFE, -200 to 260 °C, BEMUFLON PTFE-SCHLAUCH 10 X 8 MM NATUR
Order No.: 90F3010
EAN: 4099891193676
MPN:
BEMUFLON PTFE-SCHLAUCH 10 X 8 MM NATUR
Unit Price (€ / mtr.)
12.3879 € *
Available: 74 mtr.
Leadtime: 5 Weeks **
Total Price:
12.39 € *
Price list
Quantity
Price per unit*
1 mtr.
12.3879 €
10 mtr.
11.3883 €
50 mtr.
10.7219 €
100 mtr.
10.0555 €
500 mtr.
9.3772 €
*incl. VAT plus shipping costs
**Subject to prior sale

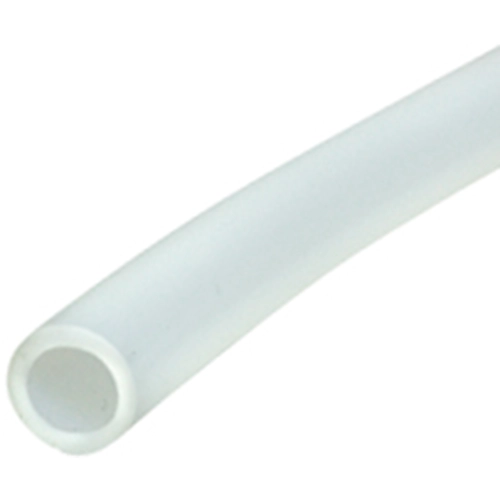

PTFE tubing, type BEMUFLON.
Excellent slide and anti-adhesion properties, good (universal) resistance against chemicals, no water absorption, non-combustible, good electrical and dielectric properties; Wall thickness: 1.0 mm. Color: plain. Operating temperatures: –200 to +260 °C. Melting point: +327 °C. Shore hardness D: 55. Density: 2.15 to 2.19 g/cm³. Tensile strength (at +23 °C): 30 to 40 N/mm².
Technical attributes (outer diameter OD), inner diameter ID): BEMUFLON 10 x 1, OD 10 mm, ID 8.0 mm
Technical specifications
| Colour | transparent | |
| Wall thickness | 1 mm | |
| Version | insulating tube | |
| min. operating temperature | -200 °C | |
| Material | PTFE | |
| max. operating temperature | 260 °C | |
| Inner diameter | 8 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173900 |
| Original Packaging | Reel with 100 meters |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
