34 407 015 00 | Accessories for Enclosures
Cassette kit, (L x W) 166 x 70.8 mm, 14 HP, for subrack, 34 407 015 00
Order No.: 71H465
EAN: 4099889574906
MPN:
34 407 015 00
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
68.9367 € *
Standard delivery time from the manufacturer is: 8 Weeks

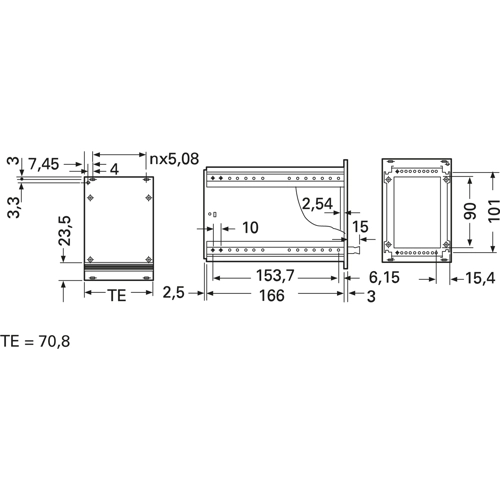

Card rack kits 3U, 166 mm depth with full front-panel width, type 34403..
For mounting into racks and enclosures, for inserting multiple PCBs. The pushed in PCBs do not have any connection to the front panel. Rear panel with large sectioned areas and 5.08 mm fastening pitch for connectors. The kit consists of 4 depth profiles, 1 anodized front panel (3.0 mm), 1 handle bar, 1 rear panel, 2 cover plates and mounting material; Please order separately: the side covers, the guide holders for mounting the card racks in the rack or enclosure, and fastening brackets for the multipole connector.
Technical attributes (type, width HP and mm): 00100, 14 HP, 70.8 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cassette kit | |
| Length | 166 mm | |
| Width | 70.8 mm | |
| cutting pitch differential | 14 HP | |
| Drilling distance | 5.08 mm | |
| Suitable for | subrack |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85381000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
